Figure 1
From: Ultra-wideband circularly polarized cavity-backed crossed-dipole antenna

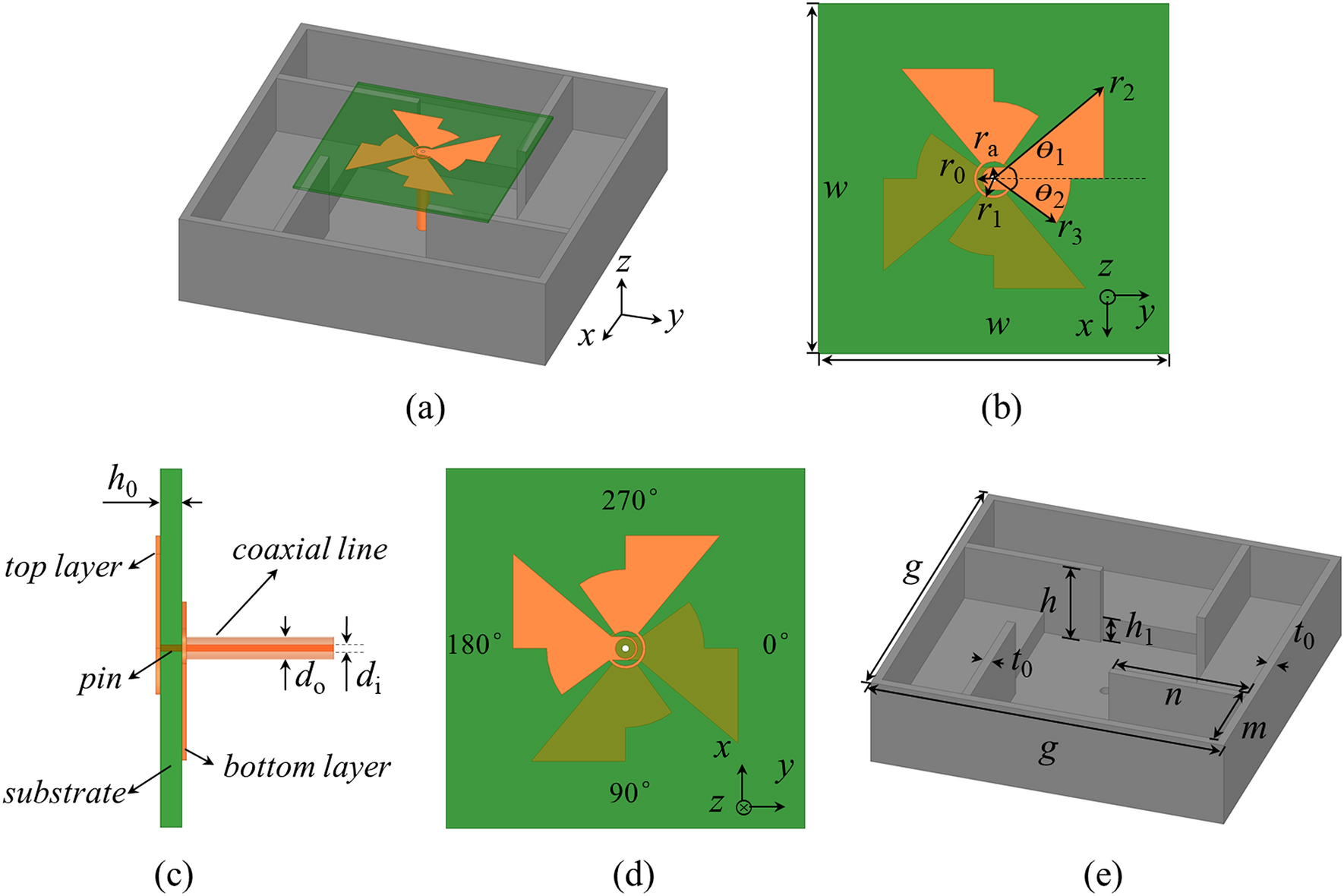

Schematic illustrating the proposed CP antenna. (a) 3D view of the proposed CP antenna. (b) Top view of the crossed-dipole. (c) Side view of the crossed-dipole. (d) Bottom view of the crossed-dipole. (e) 3D view of the modified cavity.
