Figure 11
From: Ultra-wideband circularly polarized cavity-backed crossed-dipole antenna

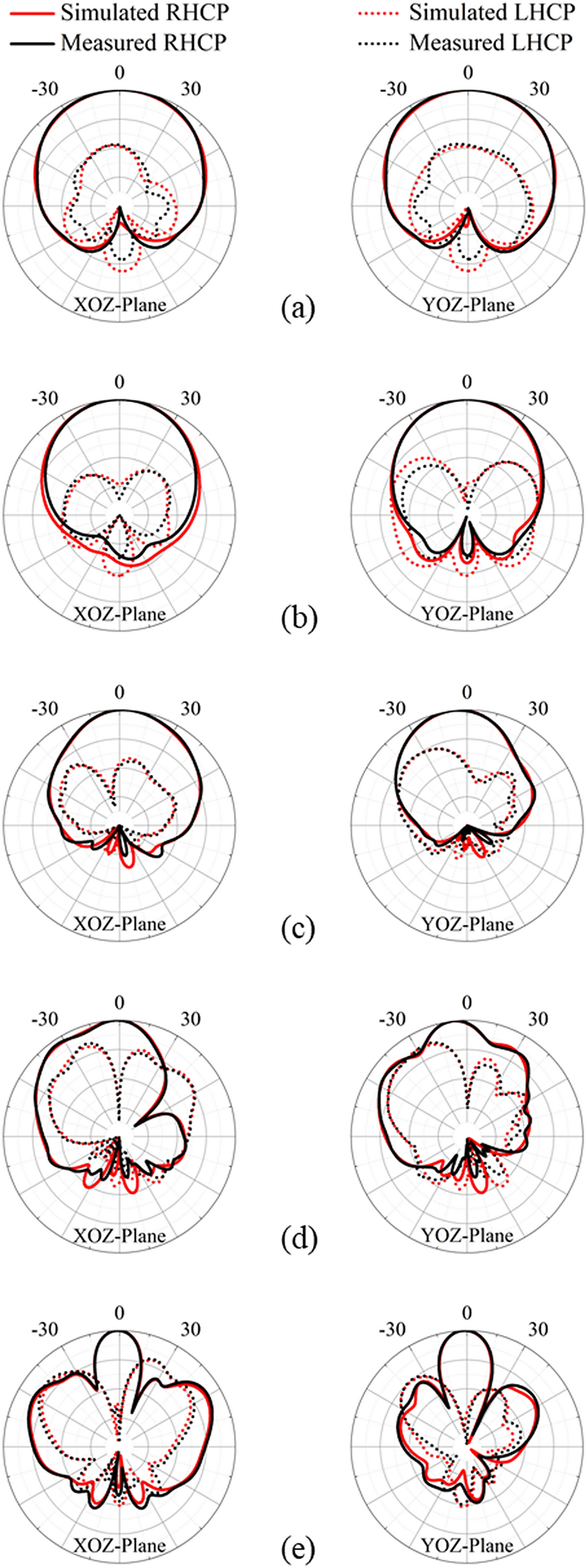

Simulated and measured normalized radiation patterns of the proposed CP antenna. (a) 1.8 GHz, (b) 2.7 GHz, (c) 4 GHz, (d) 5.3 GHz, (e) 6 GHz.
