Figure 1

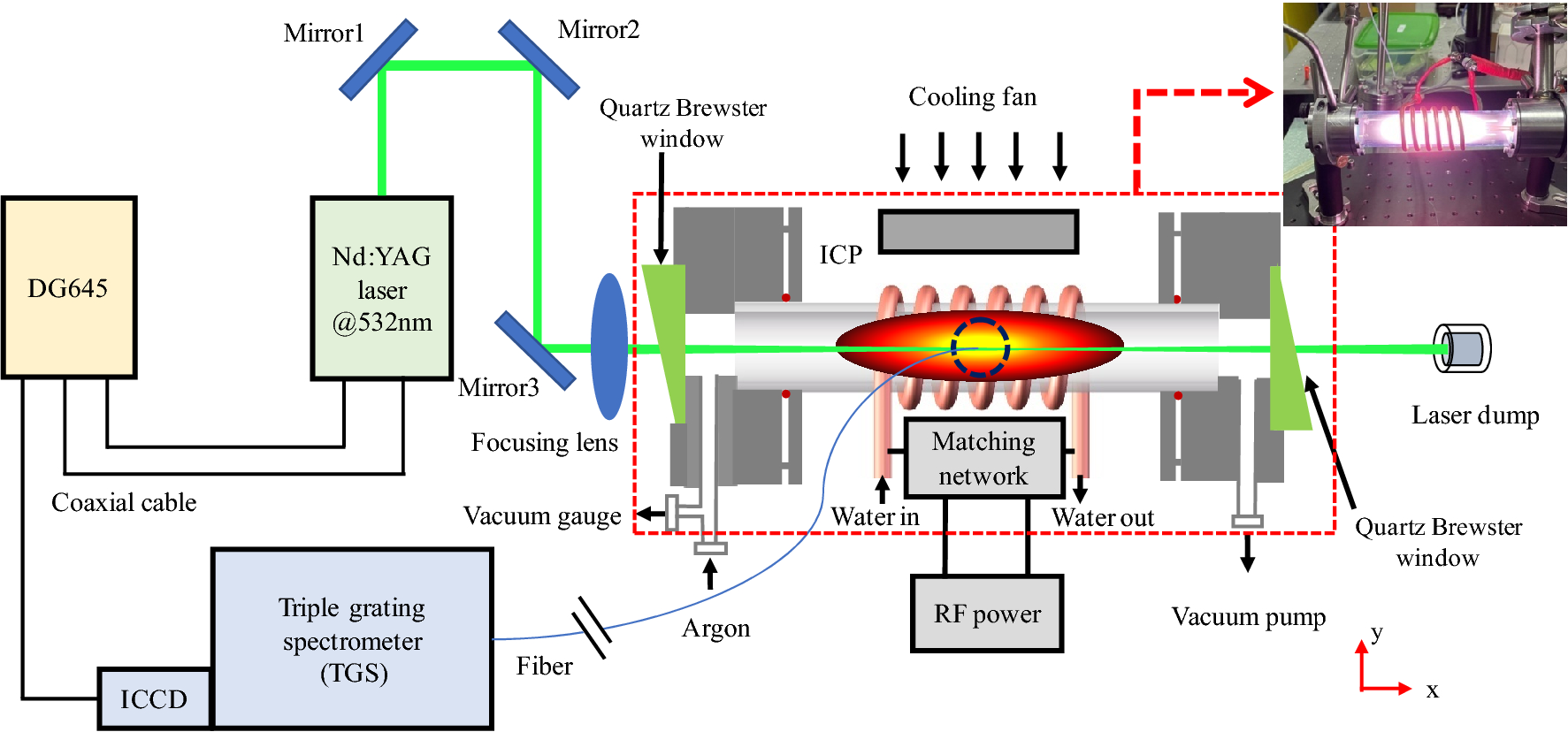

Schematic diagram of the TS experiment. In the upper right corner is a photo of the ICP generator corresponding to the red box in the schematic.

Schematic diagram of the TS experiment. In the upper right corner is a photo of the ICP generator corresponding to the red box in the schematic.
