Figure 7

From: An experimental method for efficiently evaluating the size-resolved sampling efficiency of liquid-absorption aerosol samplers

Figure 7

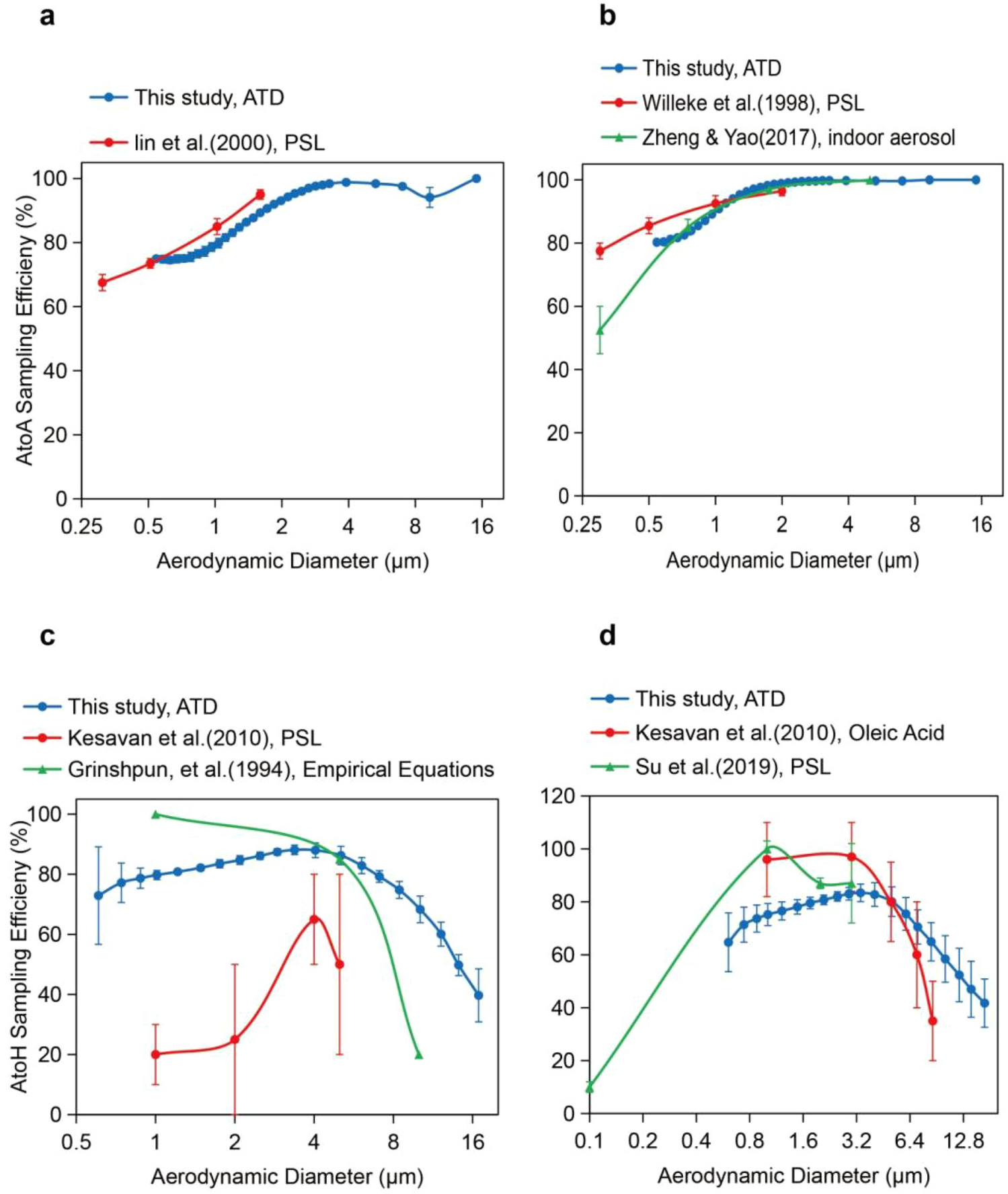

The size resolved physical sampling efficiency of AGI-30 and BioSampler retrieved from literature and results obtained in this work. Operating conditions were 12.5 L/min and 20 mL water. (a) AtoA Sampling efficiency of AGI-30. (b) AtoA Sampling efficiency of BioSampler. (c) AtoH Sampling efficiency of AGI-30 (d) AtoH Sampling efficiency of BioSampler.
