Figure 3

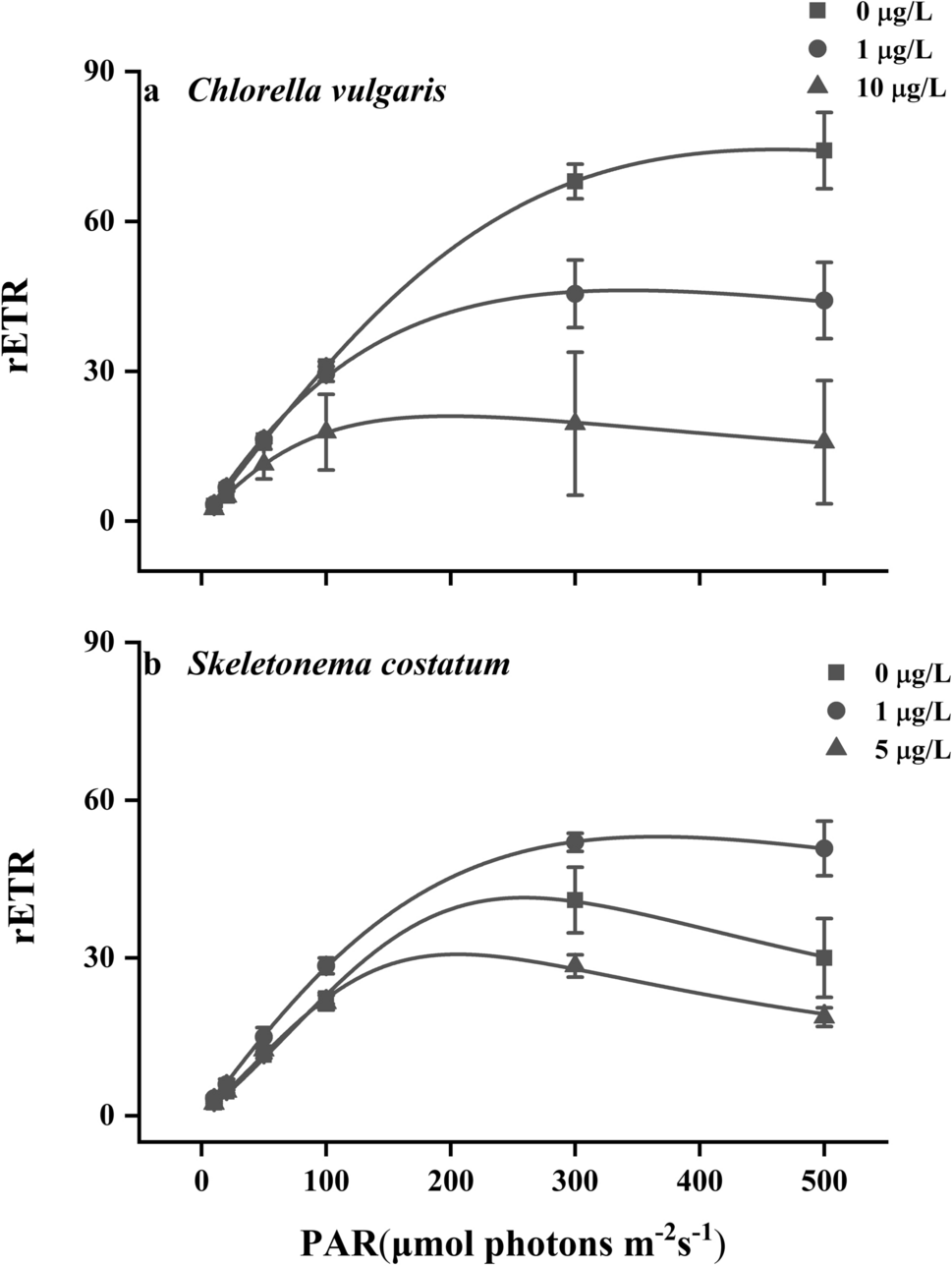

The rapid light curves determined by variations of relative electron transport rate (rETR) under progressively increasing light intensities in Chlorella vulgaris (a) and Skeletonema costatum (b) cells at different phenanthrene concentrations. The data are means ± SD of triplicate cultures (n = 3).
