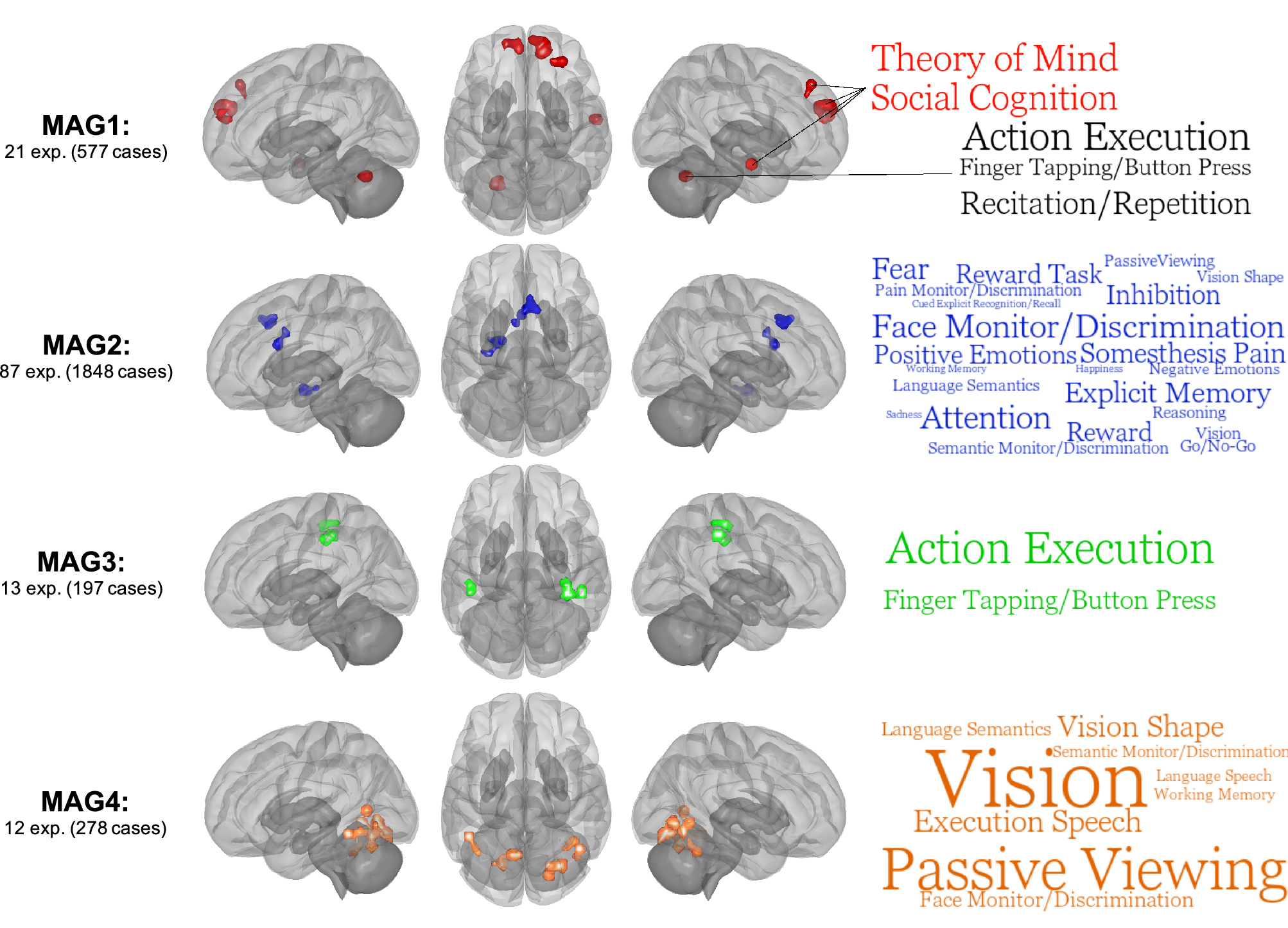

Figure 3
From: Meta-analytical transdiagnostic neural correlates in common pediatric psychiatric disorders
ALE meta-analysis on each significant meta-analytical grouping (MAGs). Images are shown for left hemisphere (lateral), superior view and right hemisphere (lateral) respectively. ALE images were thresholded at p < 0.001 at the voxel-level and pFWE > 0.05. Word clouds were generated using BrainMap database terms (Behavioral Subdomains & Paradigm). Font size represents Z-score associated with the whole MAG (all words are significant p = 0.05 with Bonferroni correction).
