Figure 2
From: Alginate oligosaccharides enhance diffusion and activity of colistin in a mucin-rich environment

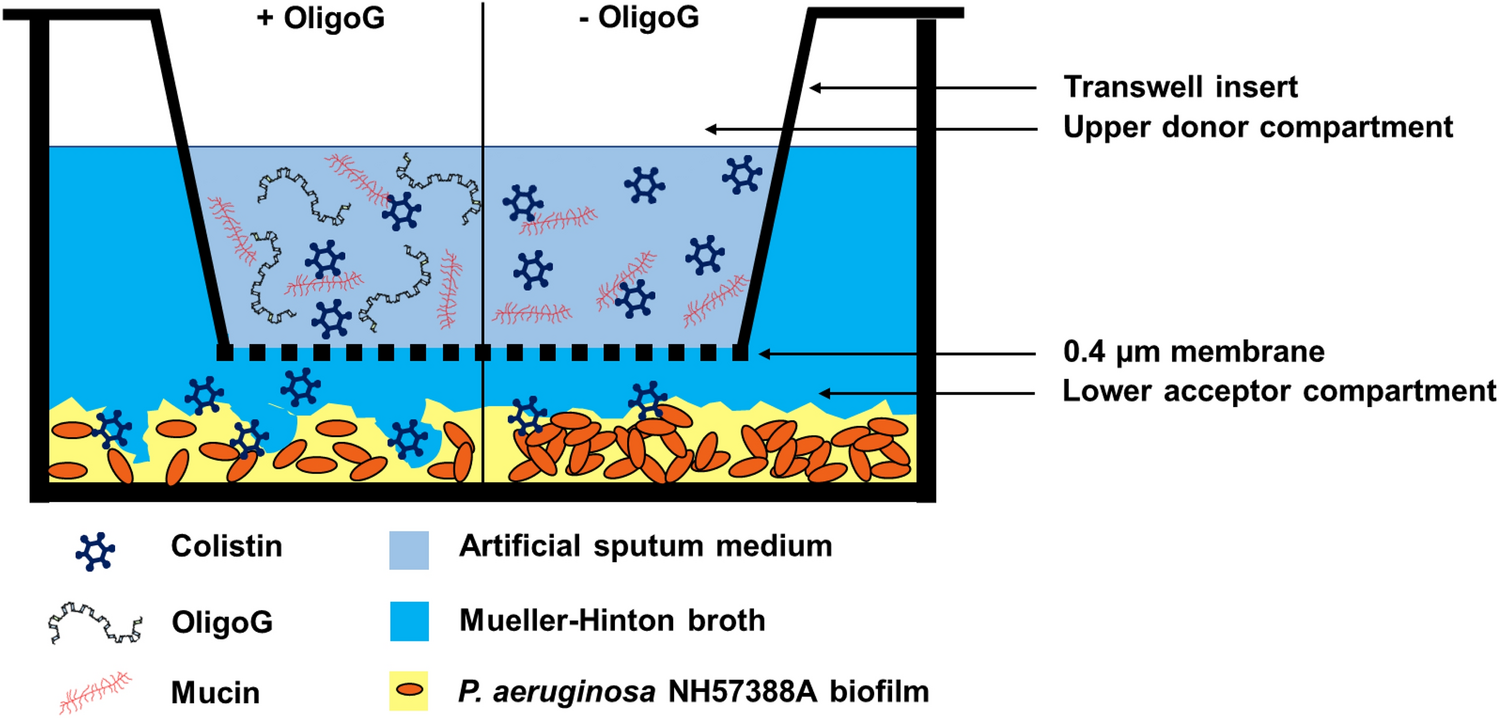

Schematic diagram of the Transwell diffusion model indicating colistin diffusion through artificial sputum medium ± OligoG and antimicrobial activity against cystic fibrosis clinical isolate P. aeruginosa NH57388A.
