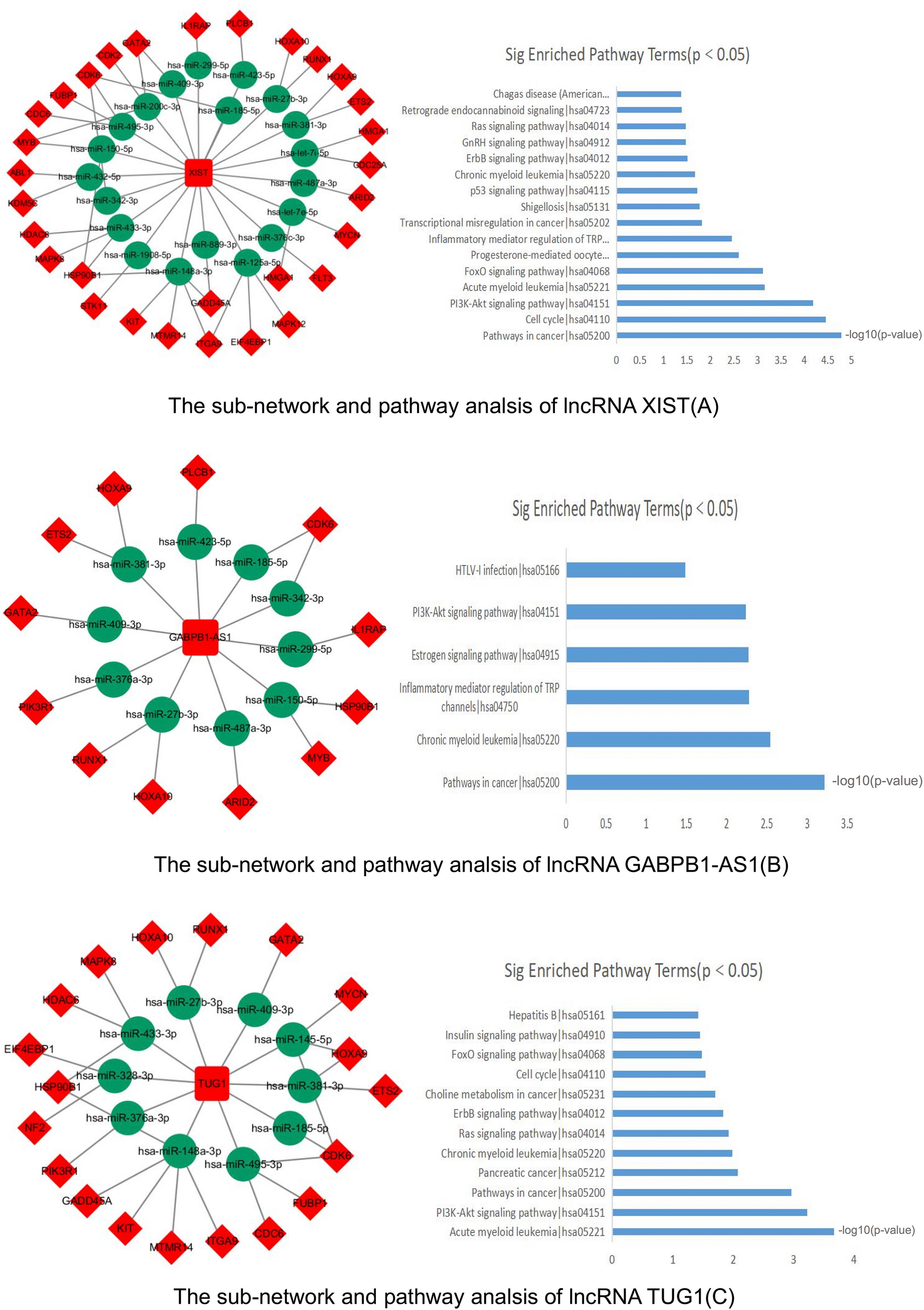

The sub-networks of three key lncRNAs and their KEGG pathway analysis by KOBAS. (A) The sub-network of lncRNA XIST and the significantly enriched pathway terms of its related mRNAs. (B) The sub-network of lncRNA GABPB1-AS1 and the significantly enriched pathway terms of its related mRNAs. (C) The sub-network of lncRNA TUG1 and the significantly enriched pathway terms of its related mRNAs.
