Figure 2 | Scientific Reports

Figure 2

From: Metabolic benefits of methionine restriction in adult mice do not require functional methionine sulfoxide reductase A (MsrA)

Figure 2

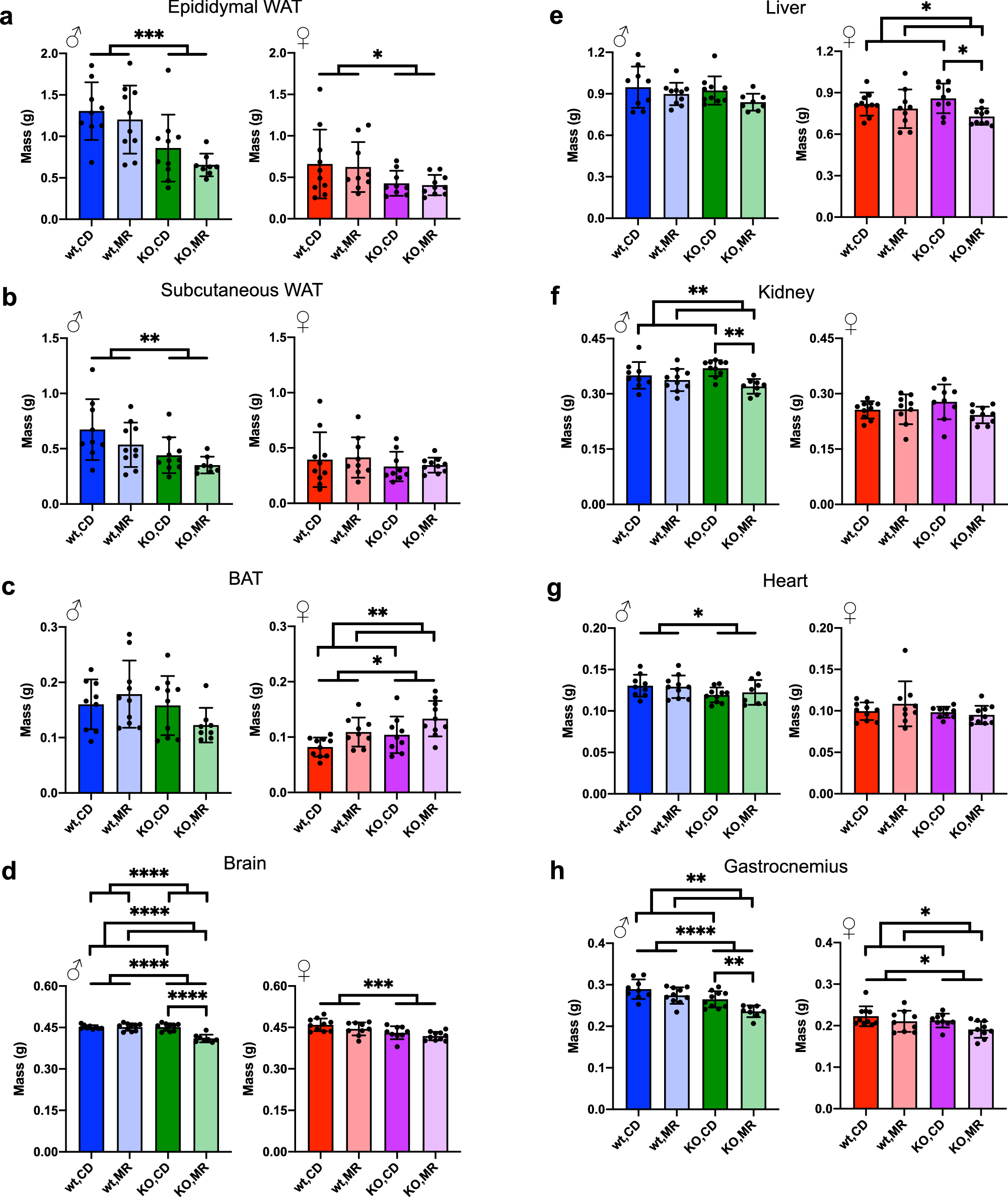

MR has sex-specific effects on tissue masses. Tissue masses for Epididymal WAT (a), Subcutaneous WAT (b), BAT (c), Brain (d), Liver (e), Kidney (f), Heart (g), and Gastrocnemius (h) were measured at time of collection. Analysis was within each sex via Two-Way ANOVA for main effects. Post-hoc analysis was performed with Sidac multiple comparisons correction to assess the diet effect within each genotype. Graphs represent means ± s.d. and all groups were 8–10 mice. (*p < 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001).
