Figure.4

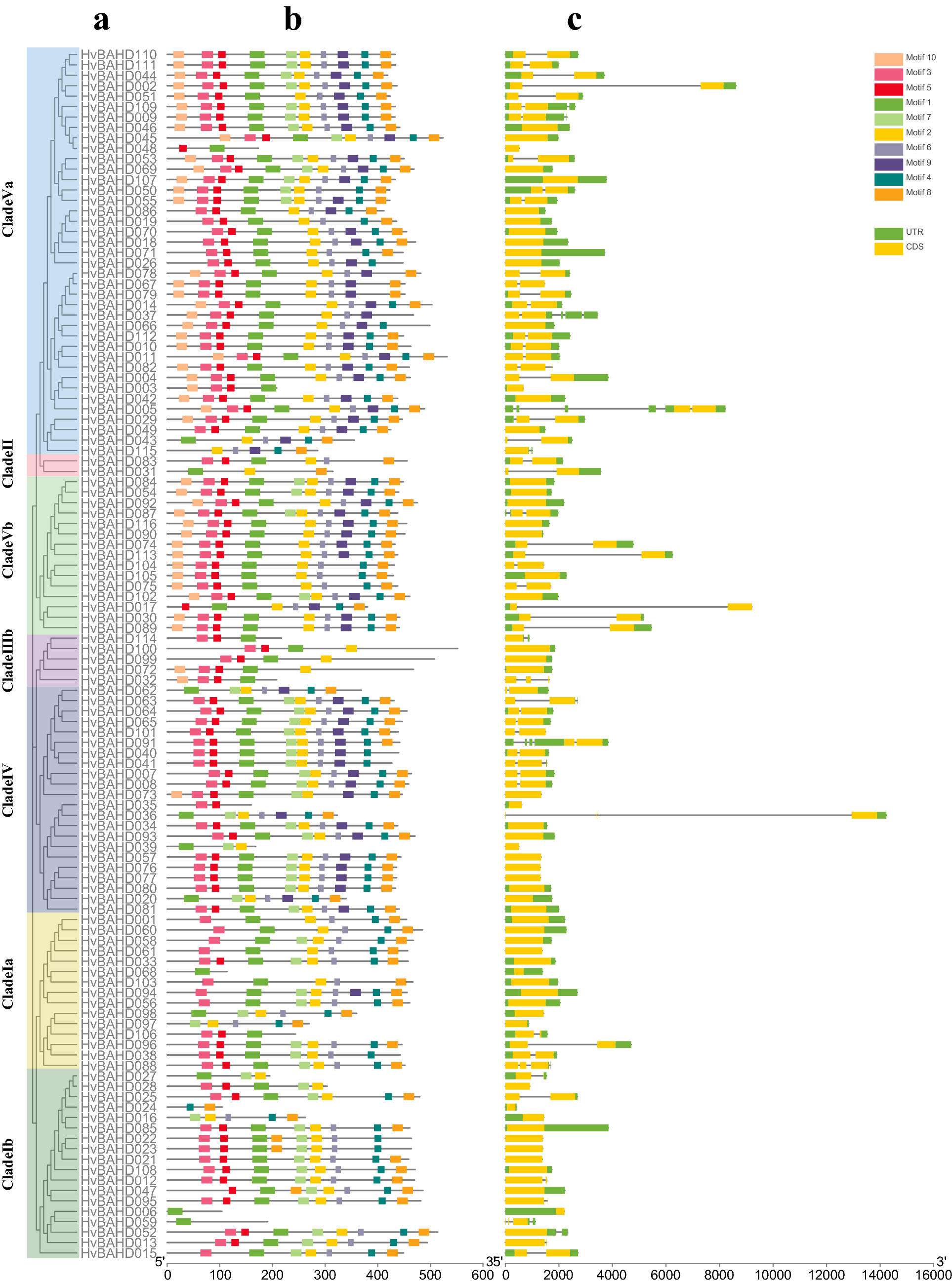

Phylogenetic relationships, gene structure and architecture of conserved protein motifs in BAHD genes from barley. (a) A maximum likelihood tree was constructed using the predicted amino acid sequences of HVBAHD proteins. This phylogenetic tree was generated by MEGA X (https://www.megasoftware.net/) and iTOL online site (https://itol.embl.de/). (b) The motif composition of barley BAHD proteins. The motifs are displayed in different colored boxes, motifs in the HvBAHD proteins were elucidated by MEME 5.0.1 (https://meme-suite.org/meme/tools/meme). Motif1 is HXXXD domain and Motif4 is DFGWG domain. The sequence information for each motif is provided in Supplementary Table S2. (c) Exon–intron structure of barley BAHD genes. The green and yellow squares represent the untranslated region (UTR) and coding sequences (CDS) respectively. The black lines represent the intronic. Genomic structure was constructed by TBtools v1.082 (https://doi.org/10.1016/j.molp.2020.06.009).
