Figure 6

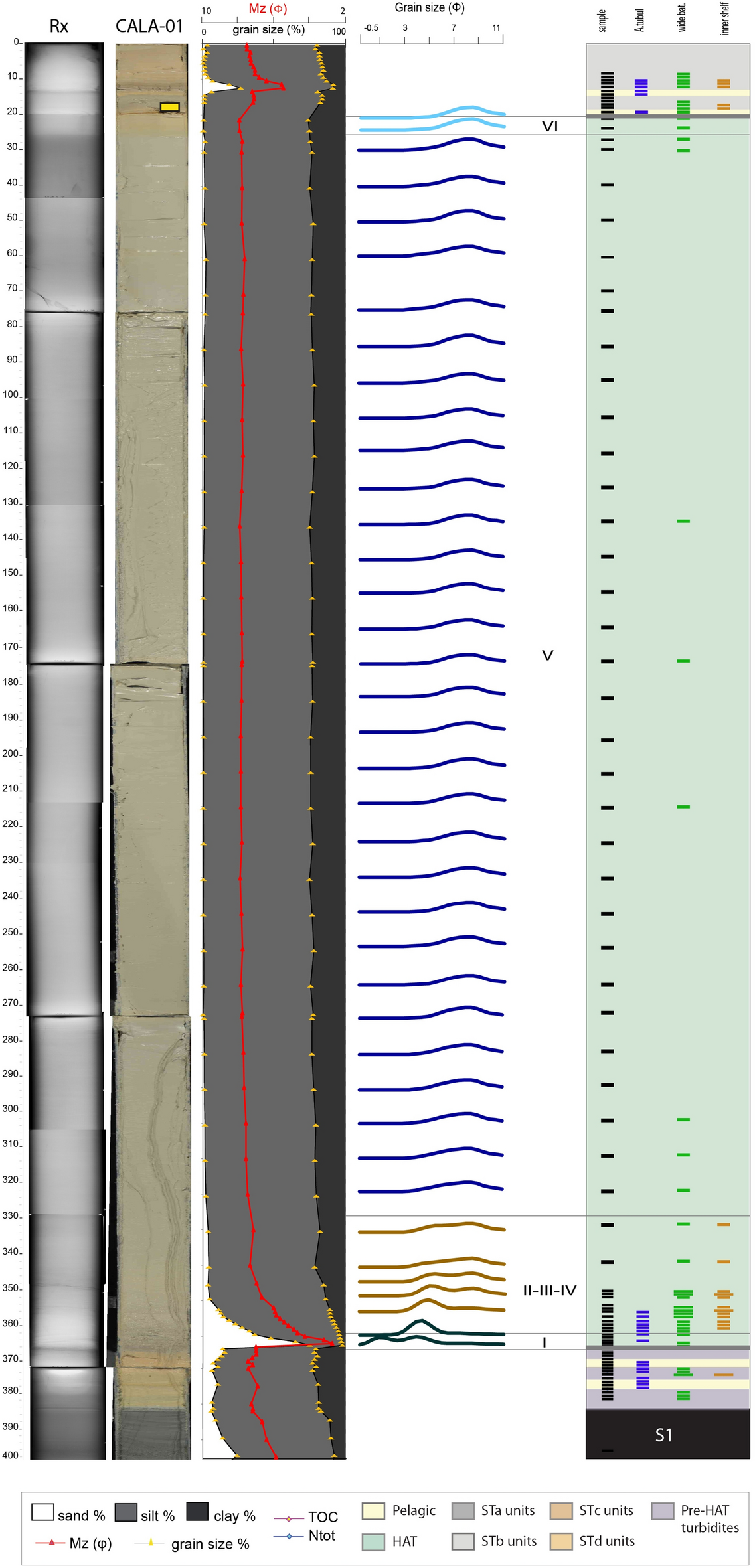

Log of core CALA-01. From left to right: CAT scan, photograph, grain size % with mean diameter in magenta, grain size modes in different colours for each sediment unit within the HAT, benthic foraminifera assemblages, subdivision in individual HAT units (I-VI) in green and pelagic units identified by different colors. Yellow rectangle on the CAT scan image, represents 14C dated samples (SM1). Benthic foraminiferal assemblages are grouped in three different classes: blue = abyssal species (mainly A. tubulosa); green = wide bathymetric ranges; brown = inner shelf (see Table 2, SM6 and SM7 for more details). Thin sample rectangles represent 0,5 cm thick samples. Thick sample rectangles represent 1 cm thick samples. Small coloured rectangles = rare specimens: < 25 specimens in 0.03 g of sample; large coloured rectangles = common specimens: > 25 specimens in 0.03 g of sample (see Table 2 for details on the bathymetric distribution).
