From: High magnetoelectric coupling of Metglas and P(VDF-TrFE) laminates

Figure 1

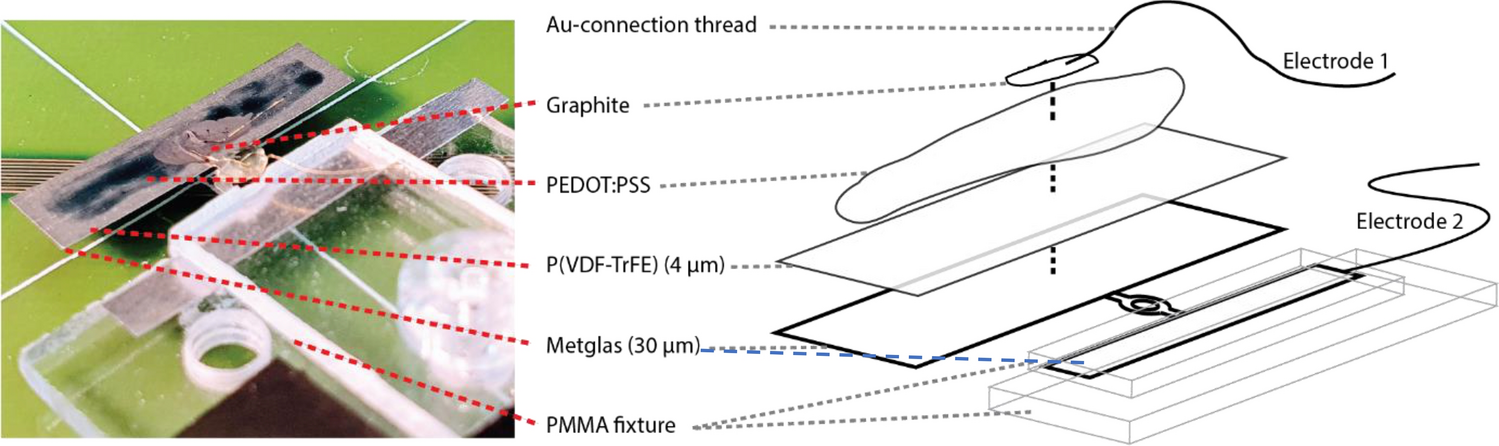

Sample setup showing the laminate structure comprised of Metglas film (magnetostrictive), P(VDF-TrFE) layer (piezoelectric) and PEDOT:PSS layer (conductive polymer) with a graphite dot to attach the thin Au wire (electrode 1). The second electrode (electrode 2) is connected to the metallic Metglas film that is clamped by the PMMA structure. For the non-contact measurements (capacitive coupling) an electrode was placed at various distances above the PEDOT:PSS layer, and electrode 2 was connected with contact to the clamped Metglas film to the electronics (see Fig. 3).
