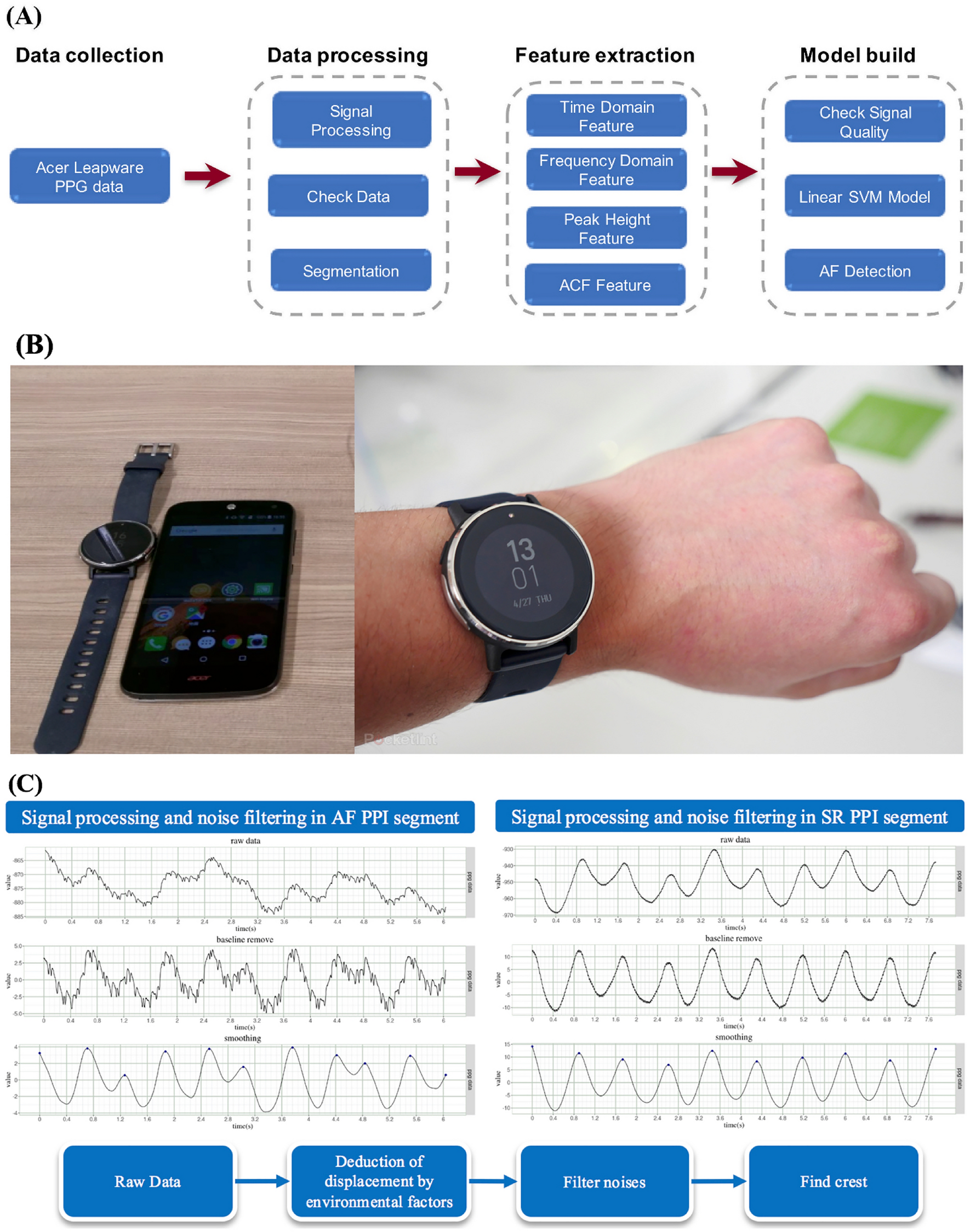

Figure 2
(A) Proposed framework of the photoplethysmogram (PPG) to detect atrial fibrillation (AF). (B) The wrist-worn smartwatch. (C) Signal preprocessing that includes baseline wandering reduction, denoising, and motion artifact detection.
