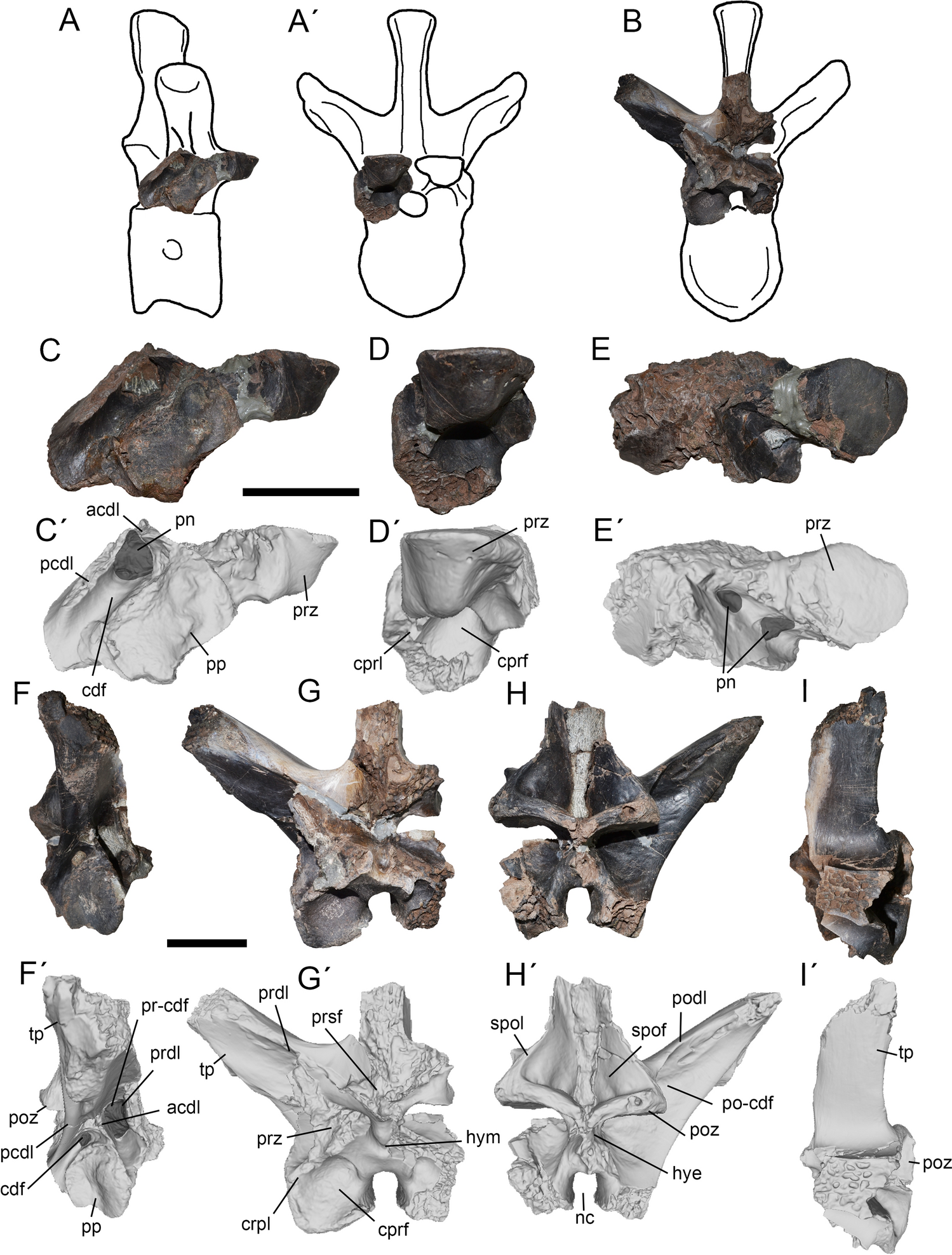

Figure 5
Fifth and sixth dorsals of Maip. Fifth dorsal, interpretative drawing showing the preserved parts (A, A´), lateral (C, C´), anterior (D, D´) and dorsal (E, E´) views. Sixth dorsal, interpretative drawing showing the preserved parts (B), lateral (F, F´), anterior (G, G´), posterior (H, H´) and dorsal (I, I´) views. Scale bar: 5 cm. Abbreviations: acdl; anterior centrodiapophyseal lamina; cdf; centrodiapophyseal fossa; cprf; centroprezygapophyseal fossa; cprl; centroprezygapophyseal lamina; hye, hyposphene; hym, hypantrum; nc, neural canal; pcdl; posterior centrodiapophyseal lamina; pn, pneumatopore; podl; postzygapophyseal lamina; poz, postzygapophyses; po-cdf; postzygapophyseal-centrodiapophyseal fossa; prdl; prezygodiapophyseal lamina; prsf; prespinal fossa; pp, parapophyses; prz, prezygapophyses; spof; spinopostzygapophyseal fossa; spol; spinopostzygapophyseal lamina; tp, transverse process.
