Figure 5
From: Direct visualization of interstitial flow distribution in aortic walls

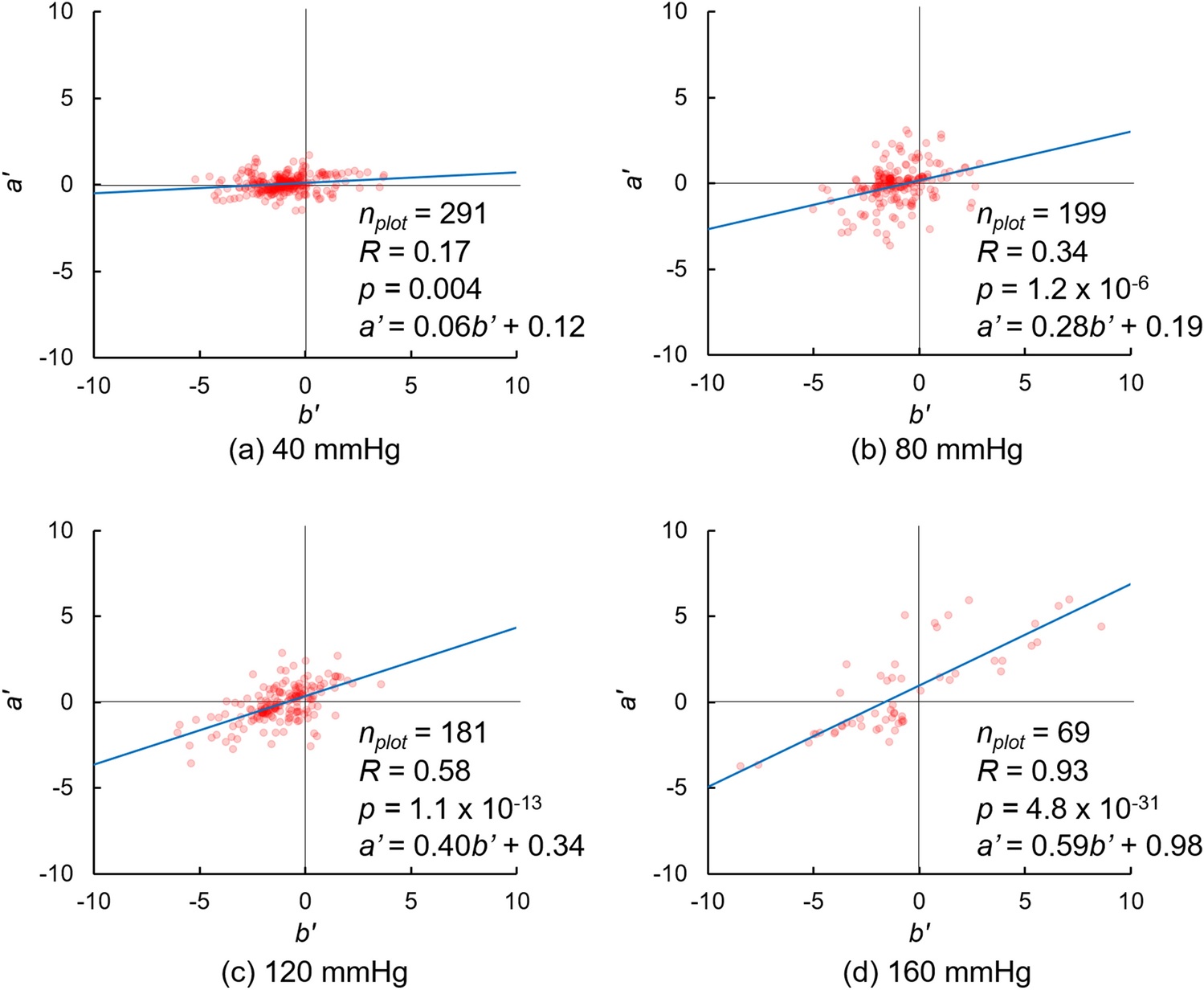

Plots of a’ and b’ as given by Eq. (8) at intraluminal pressures of (a) 40, (b) 80, (c) 120, and (d) 160 mmHg. nplot, number of plots. These graphs are obtained from the images shown in Figs. 3 and 4. The correlation coefficient R was tested using the Student’s t-test. The graph was created using the Microsoft Excel for Microsoft 365 MSO (16.0.14326.20782).
