Figure 5
From: Large landslides cluster at the margin of a deglaciated mountain belt

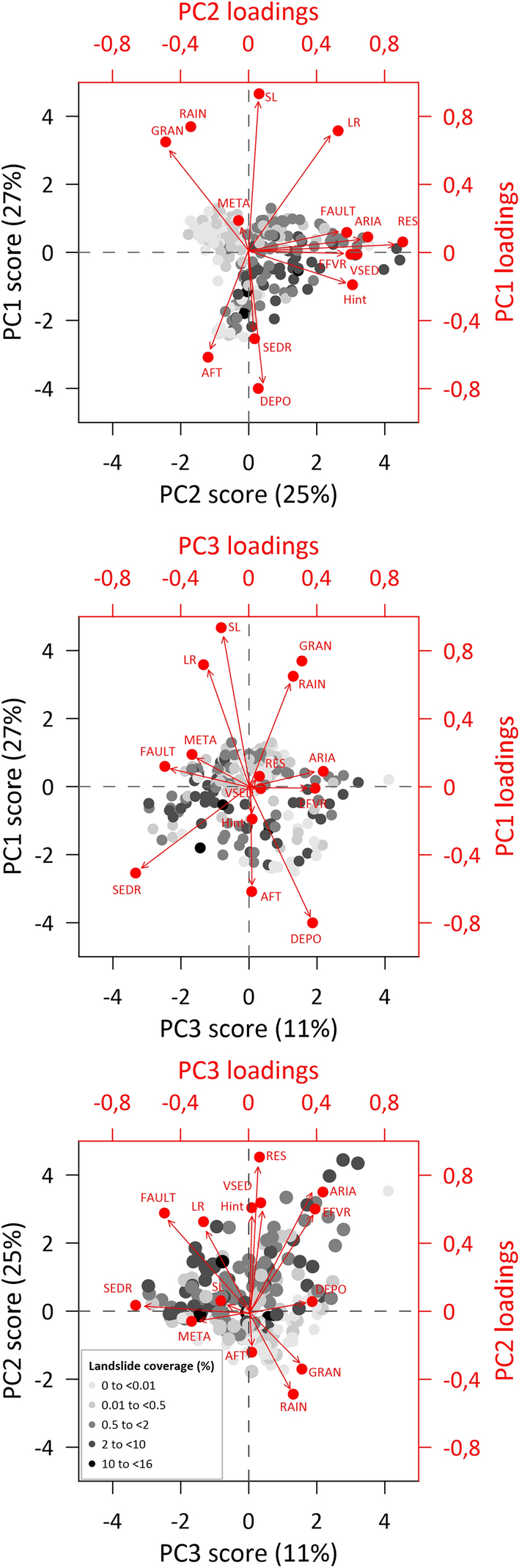

PCA results showing principal component scores and loadings for the first three principal components (PC1–PC3). Labels abbreviations: ARIA: Aria Intensity, AFT: mean AFT age, DEPO: coverage (%) by Quaternary unconsolidated deposits, EFVR: coverage (%) by effusive volcanic rocks, FAULT: mean fault density, GRAN: coverage (%) by granitoid rocks, Hint: mean hypsometric integral, LR: mean local relief, META: coverage (%) by metamorphic rocks, RAIN: mean annual precipitation totals, RES: residual relief, SL: mean slope, SEDR: coverage (%) by sedimentary rocks; VSED: coverage (%) by volcanic-sedimentary rocks.
