Figure 1

From: Halotolerant biofilm-producing rhizobacteria mitigate seawater-induced salt stress and promote growth of tomato

Figure 1

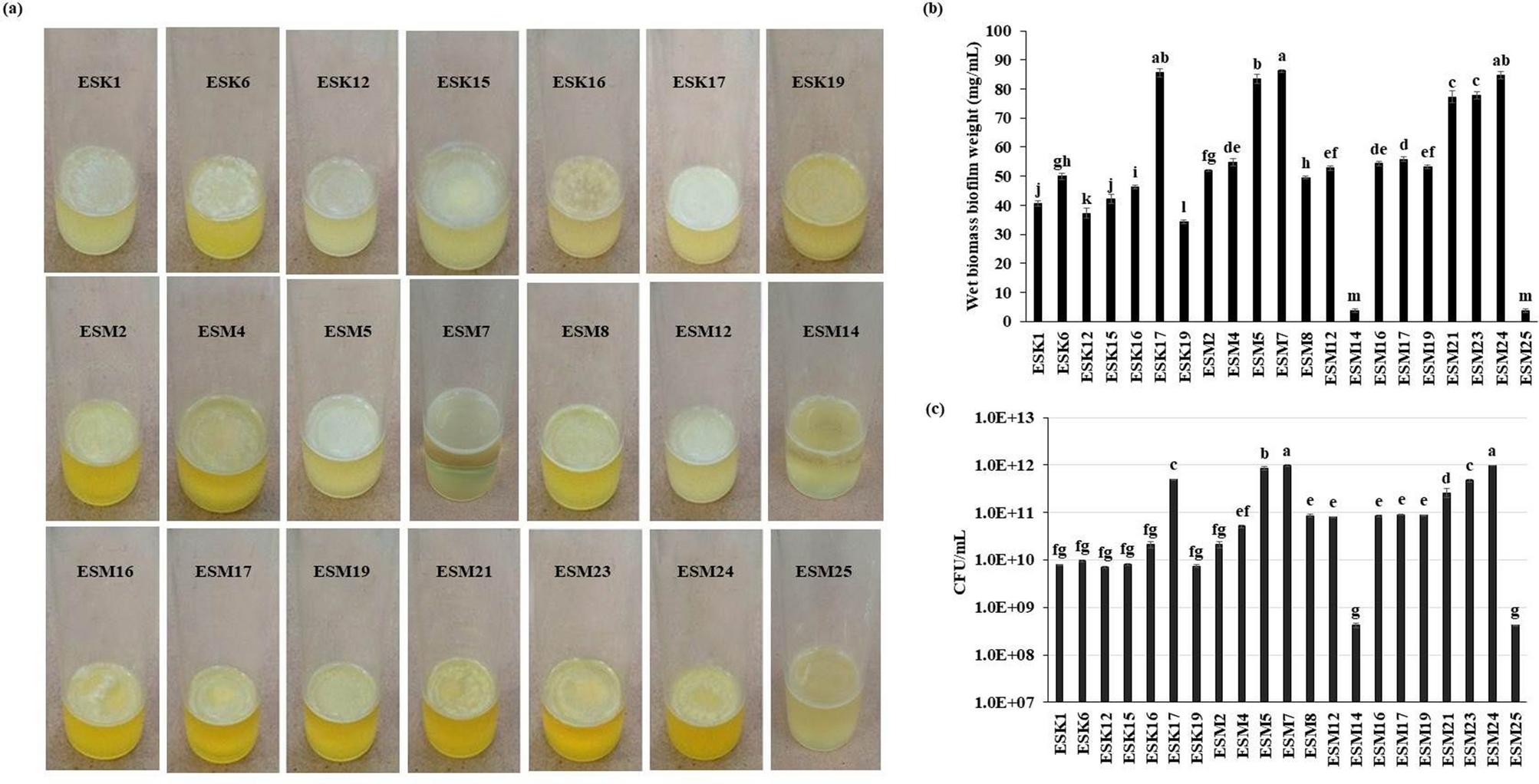

Biofilm formation by different rhizobacterial isolates in the glass test tubes containing 5 mL SOBG supplemented with 5% NaCl after 72 h incubation in a static condition at 28 °C (a). Biomass (wet) biofilm production by various isolates (b). Number of bacteria associated with biomass biofilm (c). The values are mean and error bars indicate standard deviation ( ±) of the three independent experiments. Values having different letters are significantly different from each other according to Fisher’s least significant difference (LSD) test (P ≤ 0.001).
