Figure 6

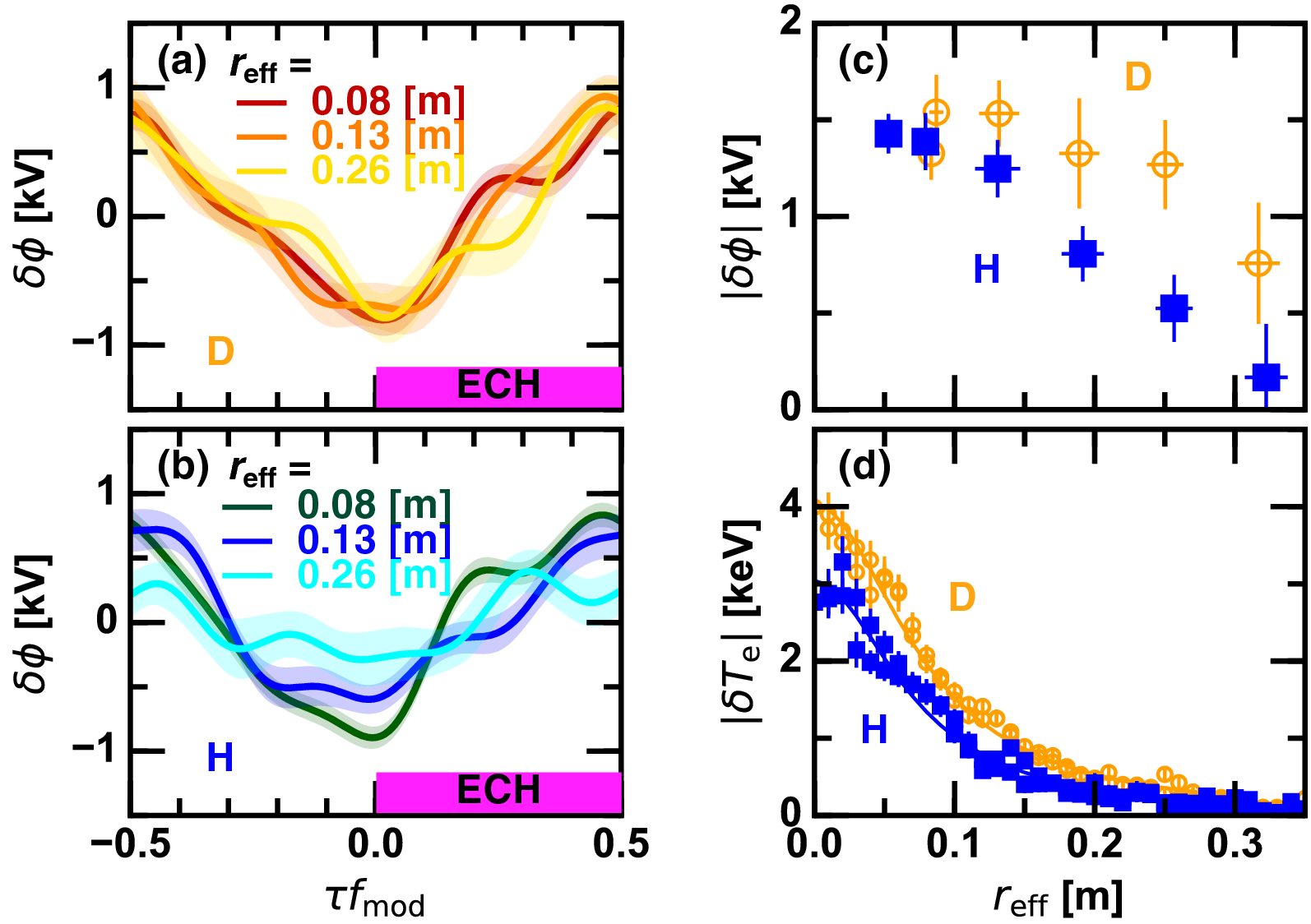

Conditionally averaged electrostatic potentials at various radii for (a) deuterium plasmas and (b) hydrogen plasmas; and radial profiles of the peak-to-peak modulation amplitude in (c) the electrostatic potential and (d) the electron temperature.
