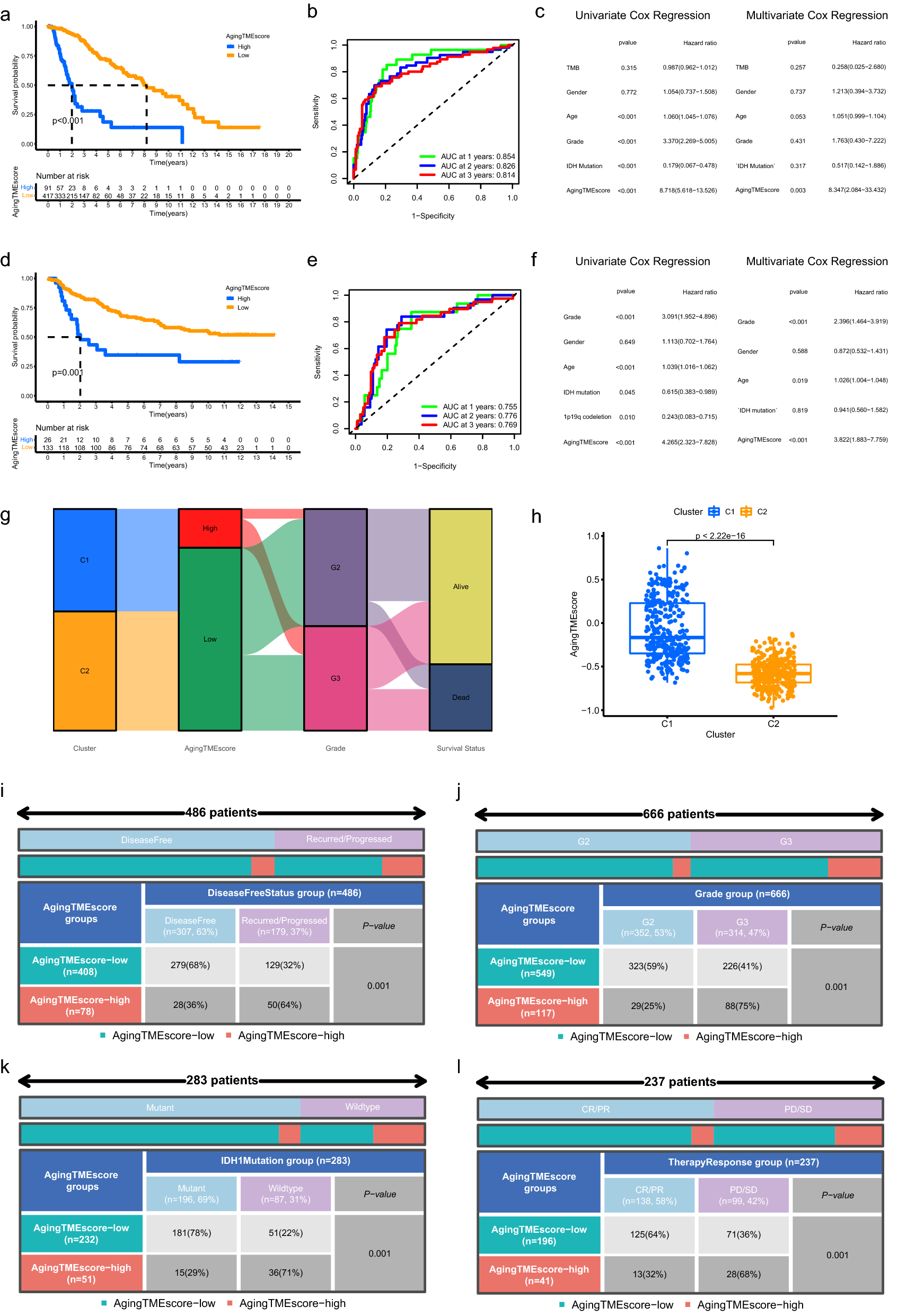

Comparison of the prognosis between low and high Aging TME score groups. (a–f) Kaplan–Meier survival analysis, time-dependent ROC curves and univariate/multivariate cox regression analysis of aging TME score in TCGA cohort (a–c) and CGGA cohort (d–f), respectively. (g) Alluvial diagram of clusters, aging TME score groups, grade and survival status. (h) Comparisons of aging TME scores between C1 and C2. (i–l) Correlation between aging TME score and disease free status (i), grade (j), IDH1 mutation status (k), conventional therapy response (l). LGG, low-grade glioma; ROC, receiver operating characteristic; AUC, area under curves; TME, tumor microenvironment.
