Figure 4 | Scientific Reports

Figure 4

From: Misfolding-induced chronic pancreatitis in CPA1 N256K mutant mice is unaffected by global deletion of Ddit3/Chop

Figure 4

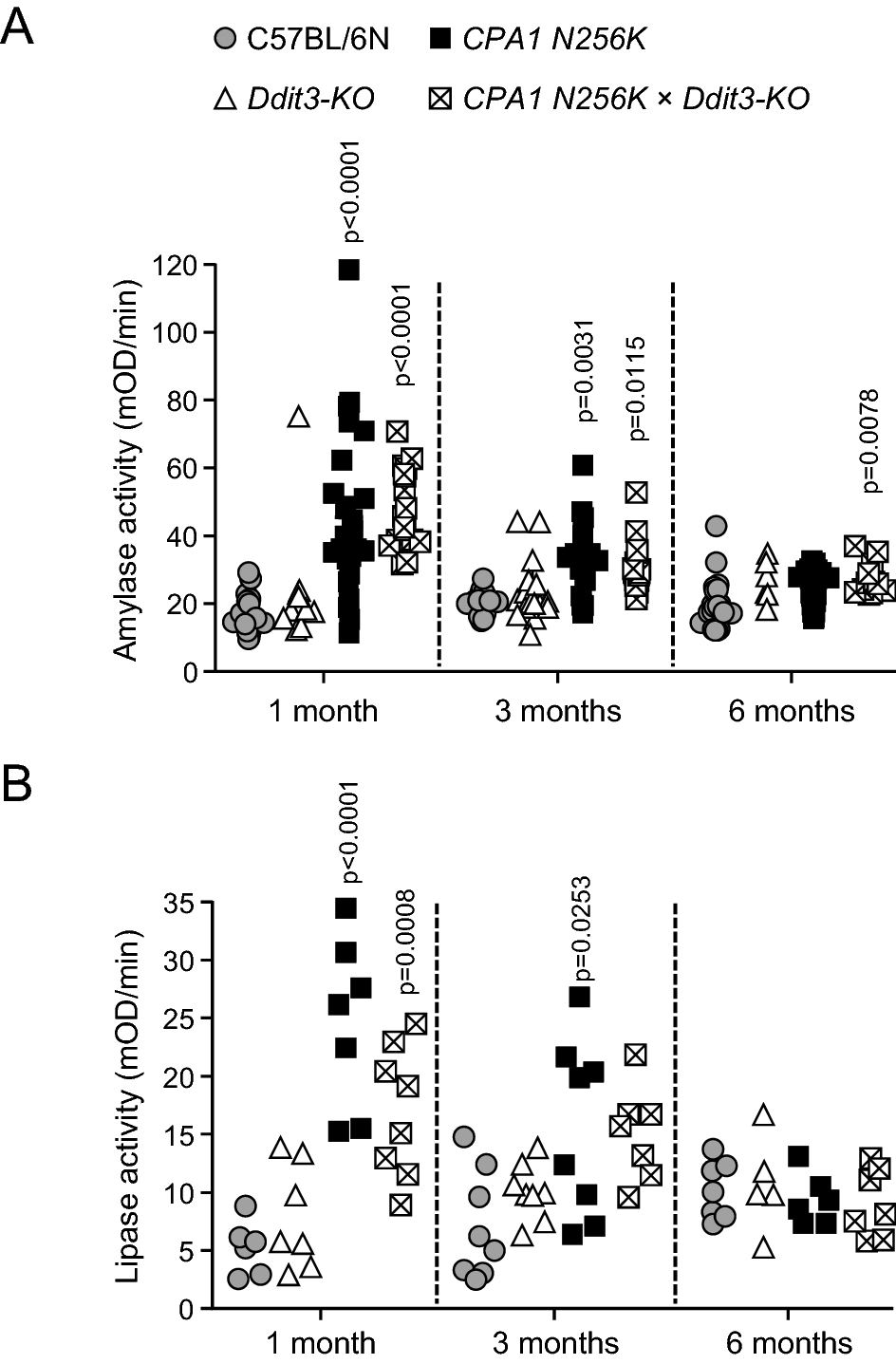

Plasma amylase and lipase activity in CPA1 N256K × Ddit3-KO mice. (A) Plasma amylase activity of mice at 1, 3, and 6 months of age. C57BL/6N (n = 23, 15, and 25), Ddit3-KO (n = 10, 17, and 6), CPA1 N256K (n = 24, 15, and 11), CPA1 N256K × Ddit3-KO (n = 18, 16, and 12). (B) Plasma lipase activity of mice at 1, 3, and 6 months of age. C57BL/6N (n = 6, 8, and 7), Ddit3-KO (n = 7, 8, and 5), CPA1 N256K (n = 7, 8, and 6), CPA1 N256K × Ddit3-KO (n = 8, 7, and 7). Individual data points are shown.
