Figure 3
From: Understanding of cell death induced by the constituents of Taxus yunnanensis wood

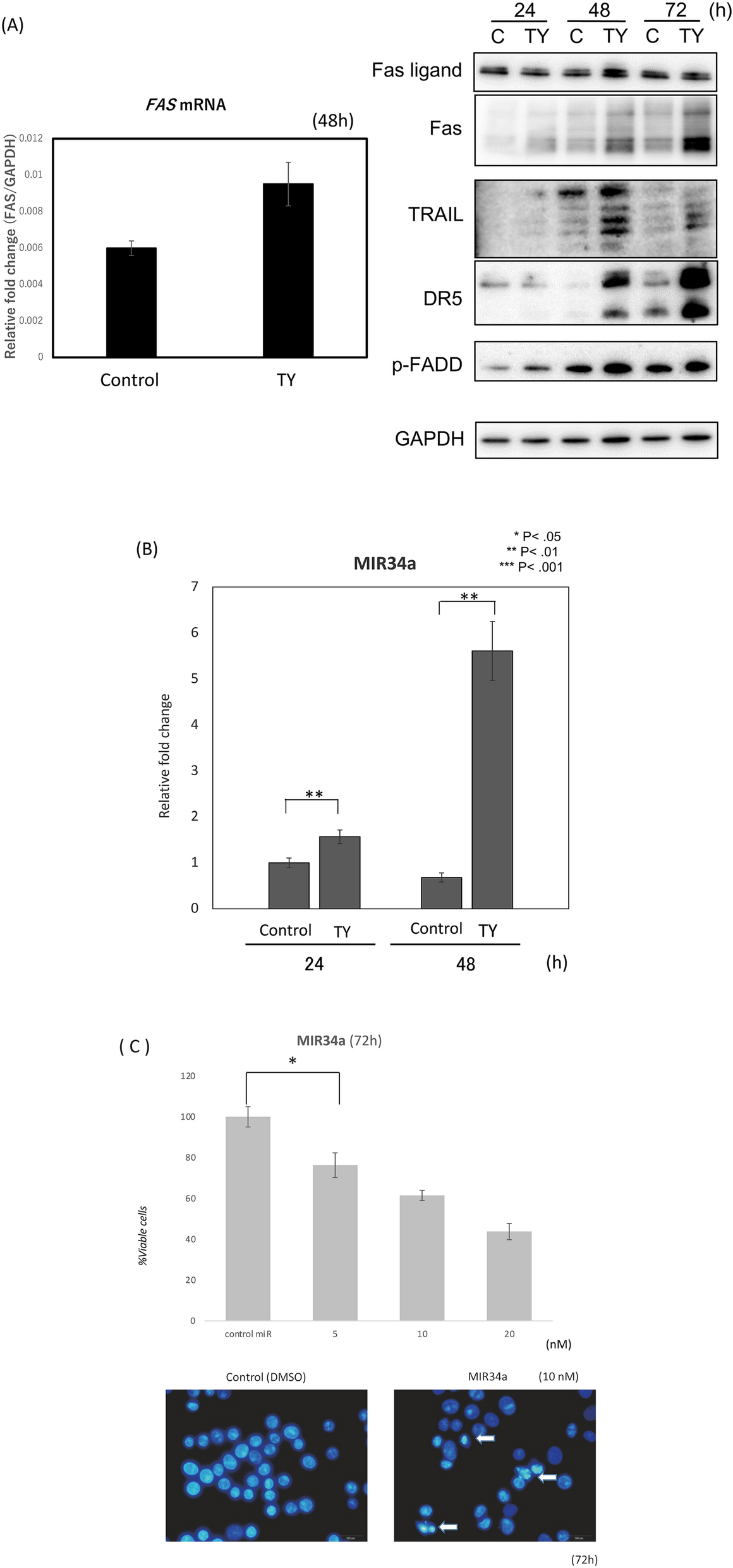

TY (5 μg/mL) induced the expression of the death factors/receptors Fas L/Fas and TRAIL/DR5. (A) The expression levels of FAS mRNA at 48 h after TY treatment estimated by qRT-PCR (left figure). Time-dependent protein expression of p-FADD and death factors/receptors Fas-L/Fas and TRAIL/DR5 were examined by Western blot analysis. (B) Time-dependent expression of MIR34a after treatment with TY estimated by qRT-PCR. Expression levels of MIR34a are shown as the relative ratios with respect to the RNU6B expression levels. (C) Ectopic expression of MIR34a inhibited cell growth dose-dependently and induced apoptosis according to Hoechst 33348 staining at 72 h after transfection. The apoptotic cells are indicated by white arrows. (D) Expression of MIR34a-targeting E2F3, SIRT1, and CyclinD1 was downregulated by the TY. (E) Anti-MIR34a (Anti; 10 and 20 nM) partly canceled the activation of caspase-8 and PARP cleavage elicited by co-transfection with MIR34a. (F) Silencing of E2F3 by siR-E2F3 or MIR32a increased in the expression levels of DR5, TRAIL, and Fas.
