From: Extensive epigenetic modification with large-scale chromosomal and plasmid recombination characterise the Legionella longbeachae serogroup 1 genome

Figure 1

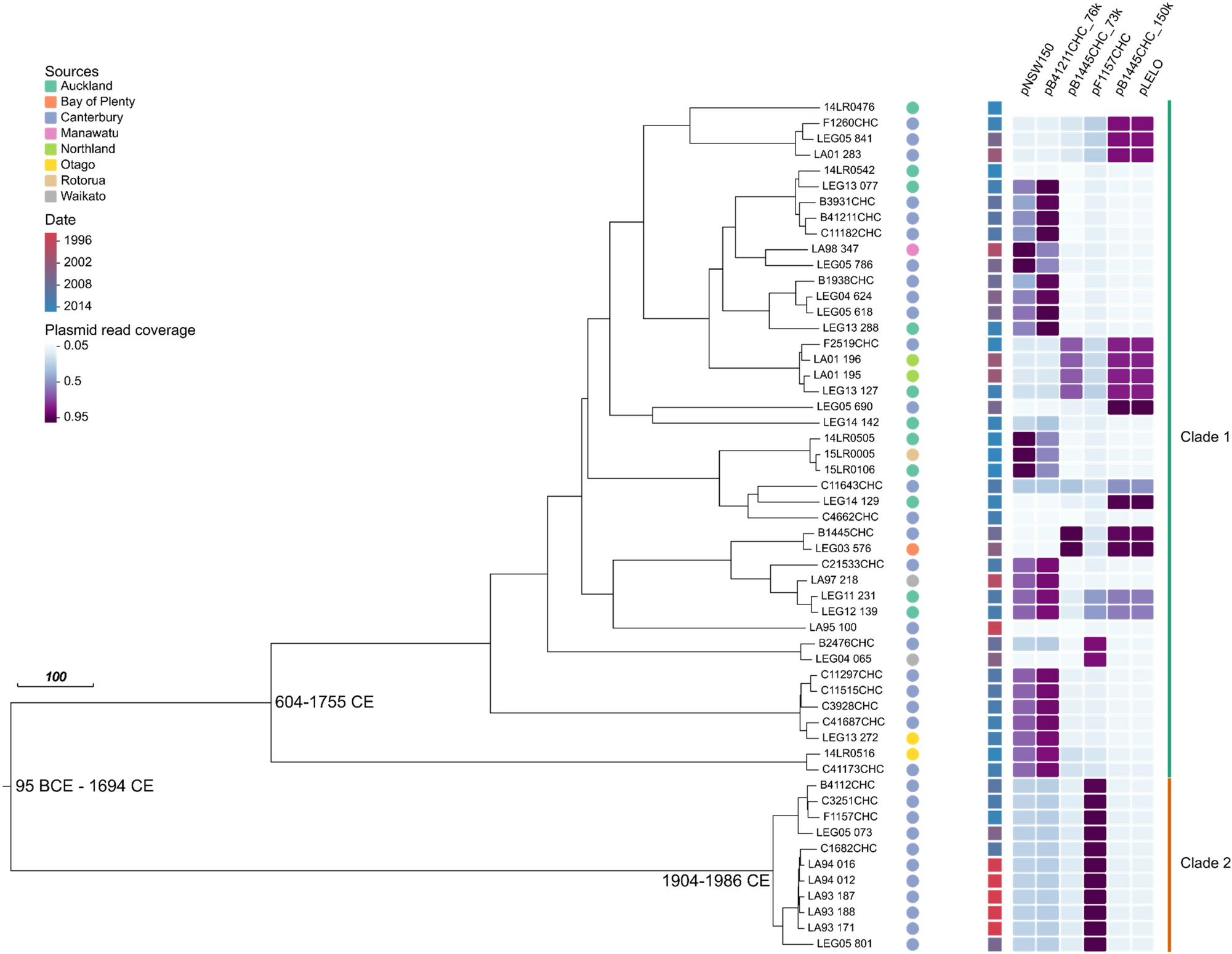

Maximum clade credibility tree of 54 L. longbeachae clinical isolates. The scale bar represents the length of 100 years. Isolates are coloured by date of collection (squares), region (circles) and plasmid read coverage (heat map). The years in parentheses represent the estimated timing of coalescent events (95% Highest Posterior Density interval).
