Figure 2 | Scientific Reports

Figure 2

From: Dopamine receptor 1 expressing B cells exert a proinflammatory role in female patients with rheumatoid arthritis

Figure 2

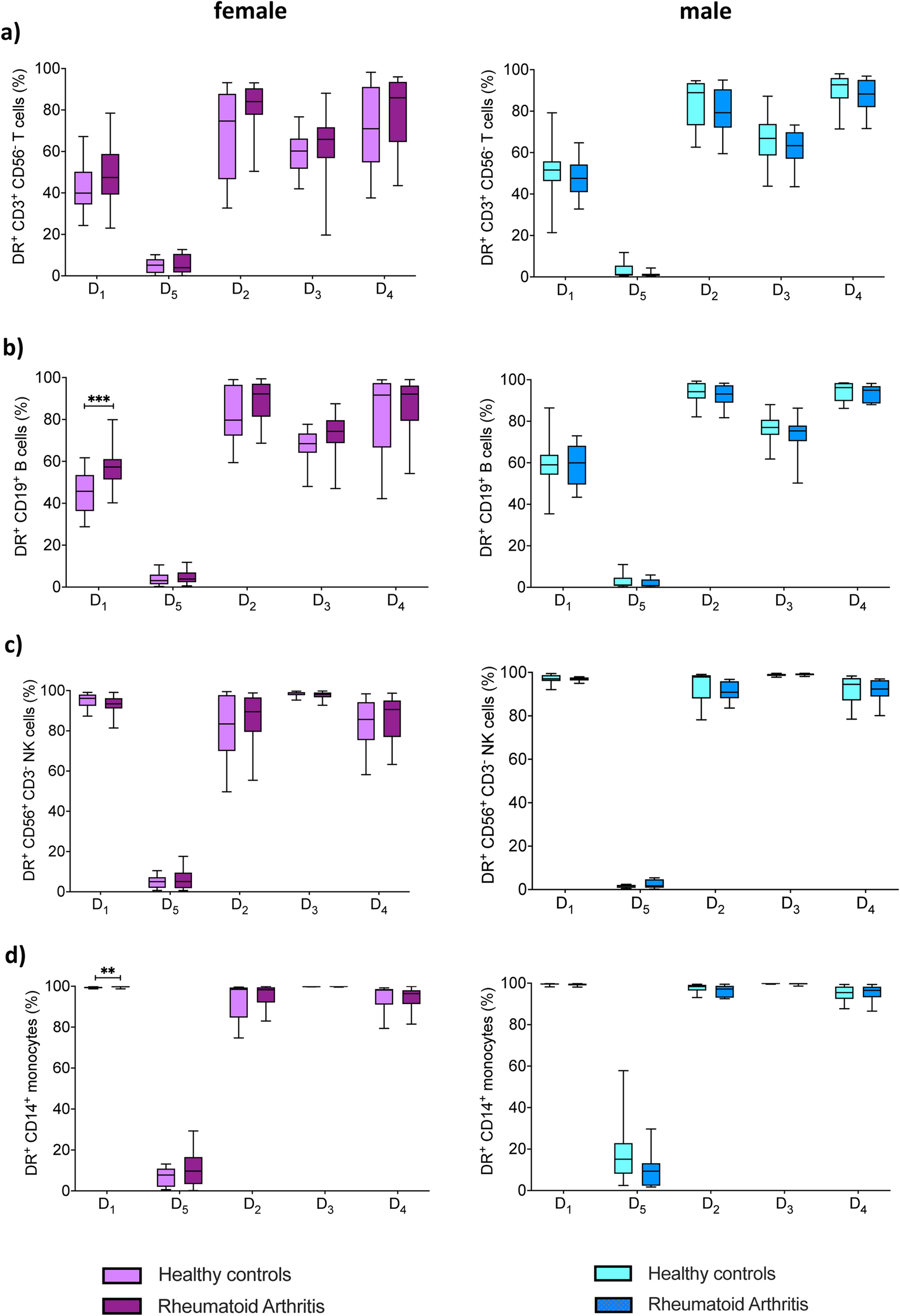

Expression of dopaminergic receptors in peripheral immune cells from RA patients and HC. Quantification of D1–D5 DR expression in CD3+CD56- T cells (a), CD19+ B cells (b), CD3-CD56+ NK cells (c) and CD14+ monocytes (d) from HC (female n = 24, male n = 16) and RA patients (female n = 27, male n = 15). Mixed-effects analysis with Geisser-Greenhouse correction and Sidak multiple comparison test was used for comparing DR expression between groups; **p ≤ 0.01, ***p ≤ 0.001.
