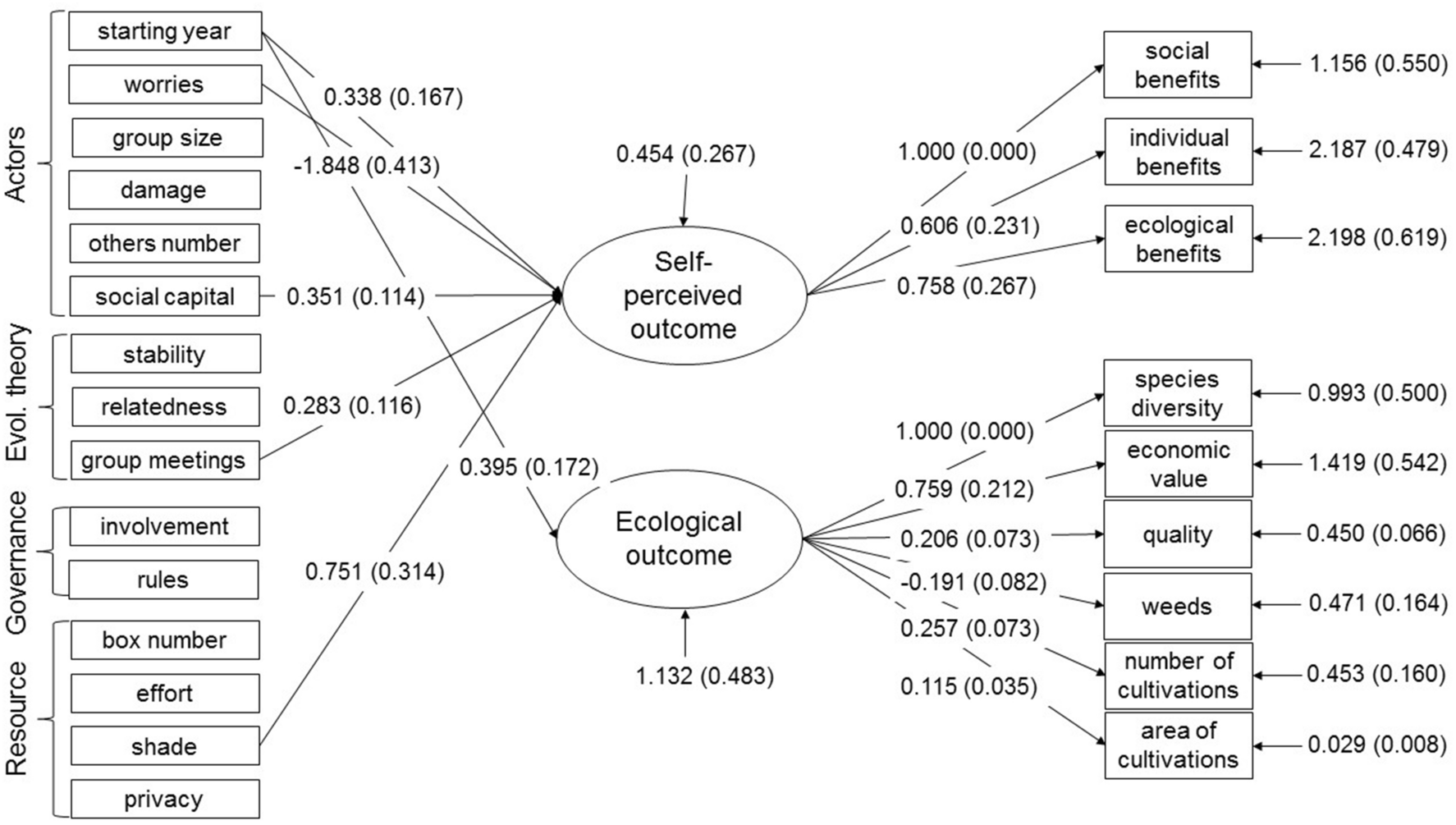

Figure 4

The SEM results for the variables belonging to the sub-systems Actors, Governance, Resource and Evolutionary theory, predicting the two latent variables Self-perceived and Ecological outcomes described by their reflective indicators. The regression coefficients presented by arrows pointing to the latent variables show the significant (p value < 0.05) associations between the predictors and the outcomes (note that the non-significant predictors were not omitted from the model, see Table 2). The estimates presented are unstandardized estimates and their standard errors are presented in brackets. Error terms signifying the variance not explained by the model are included for latent variables and the reflective indicators.
