Figure 10
From: GaN-based mini-LED matrix applied to multi-functional forward lighting

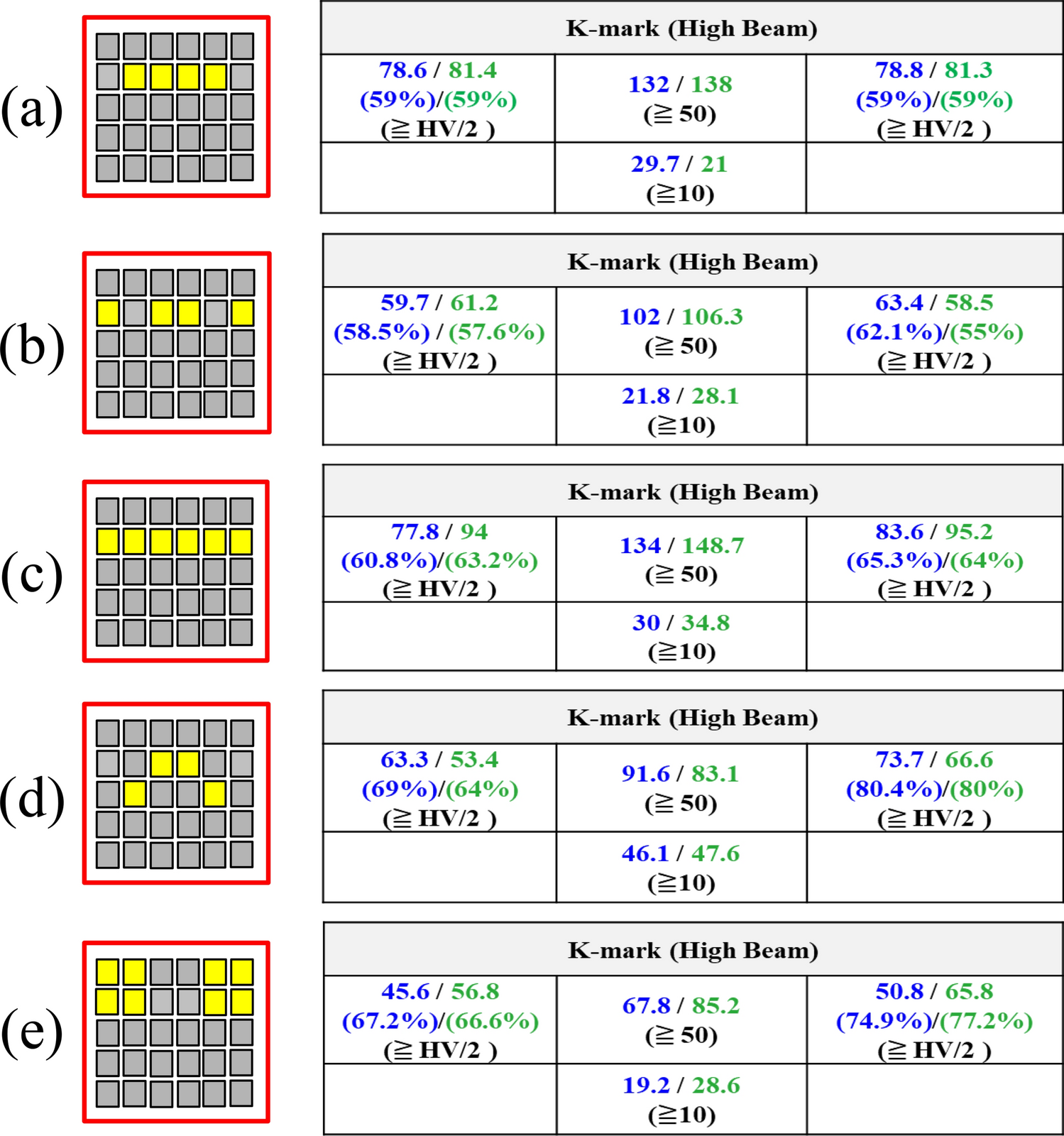

The check points for the high beam of the K mark regulation when (a) B2/C2/D2/E2 (b) A2/C2/D2/F2 (c) A2/B2/C2/D2/E2/F2 (d) B3/C2/D2/E3 (e) A1/B1/E1/F1 and A2/B2/E2/F2 were turned on. The first value in blue is from the simulation, and second value in green is by measurement.
