Figure 15
From: GaN-based mini-LED matrix applied to multi-functional forward lighting

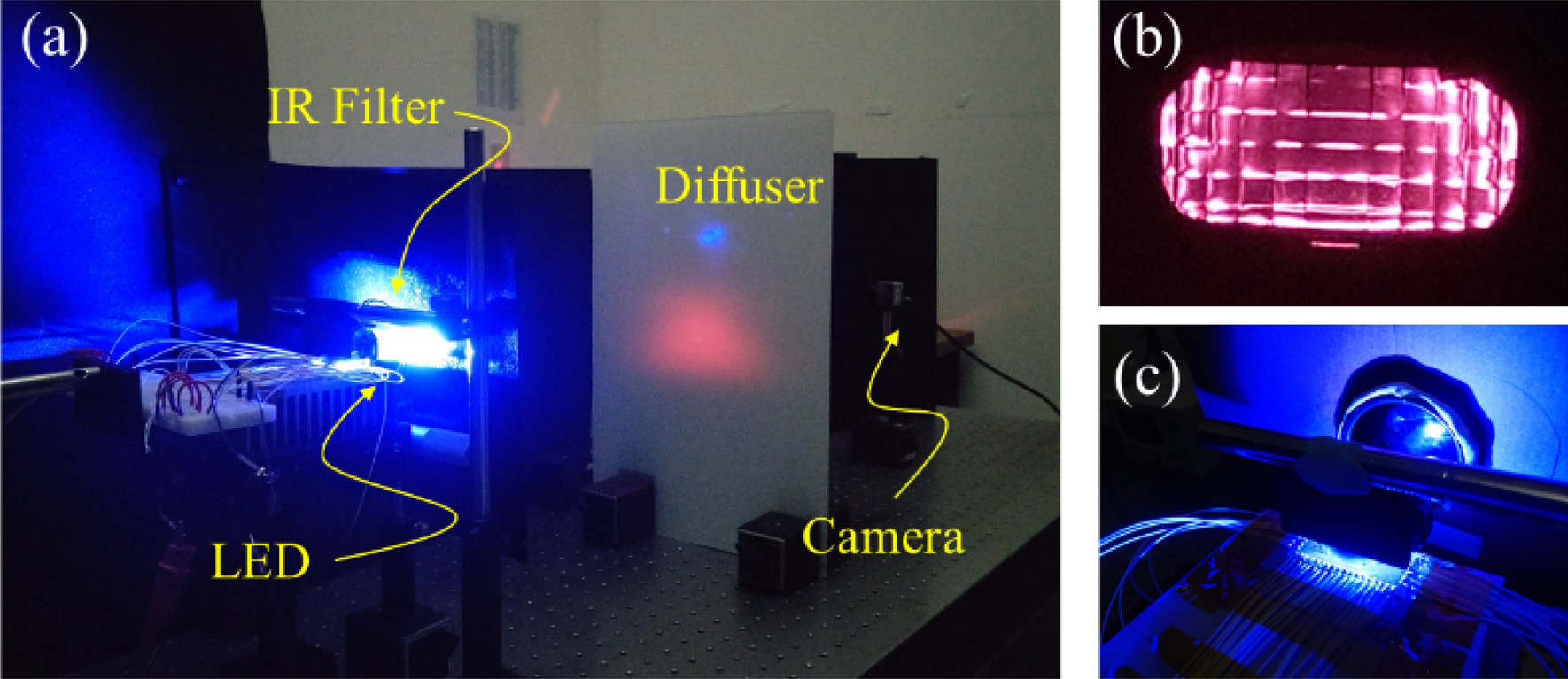

(a) The experiment setup, (b) viewing the reflector through the IR filter, and (c) viewing the IR filter from the LED side. The light pattern is up side down in the experiment owing to the setup geometry.
