Figure 4
From: GaN-based mini-LED matrix applied to multi-functional forward lighting

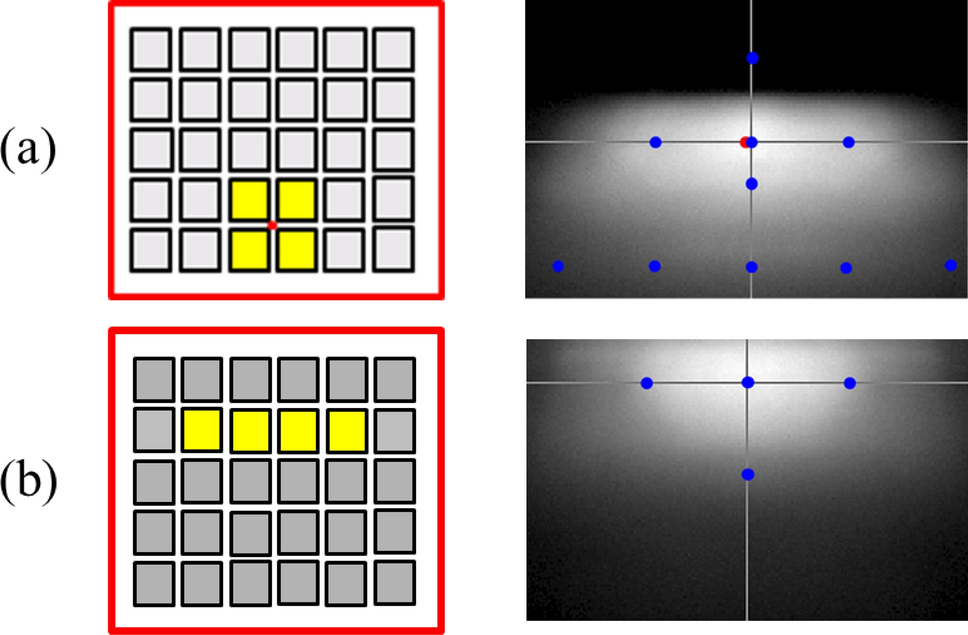

The turned-one LED dies (yellow) at different locations and the corresponding light patterns, where (a) is for low beam, and (b) is for high beam.
