Figure 5
From: GaN-based mini-LED matrix applied to multi-functional forward lighting

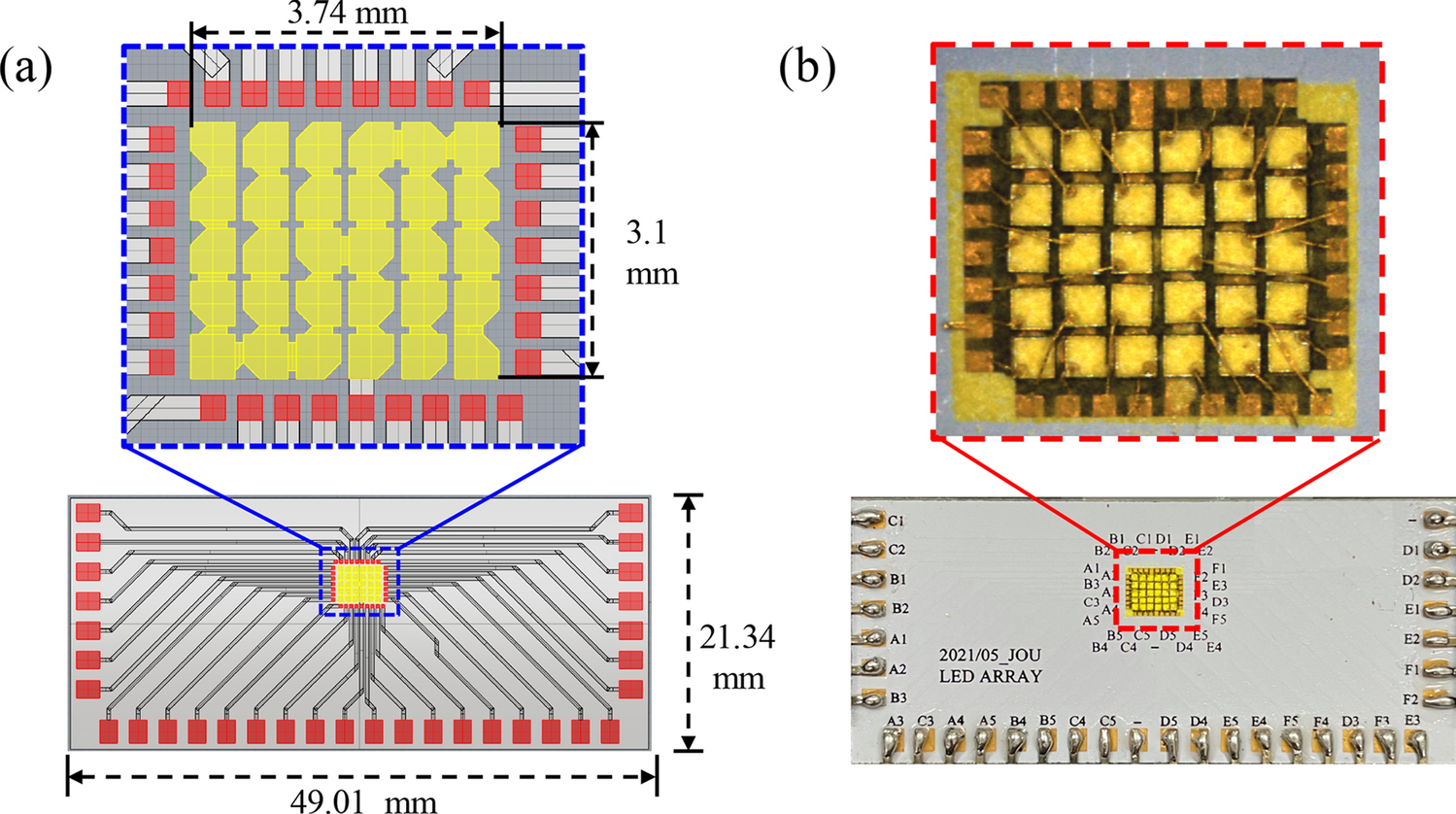

(a) The designed arrangement of the LED dies and the MCPCB layout. (b) The corresponding sample.
