Figure 5
From: Efficient double-layer sintering of titanomagnetite concentrate

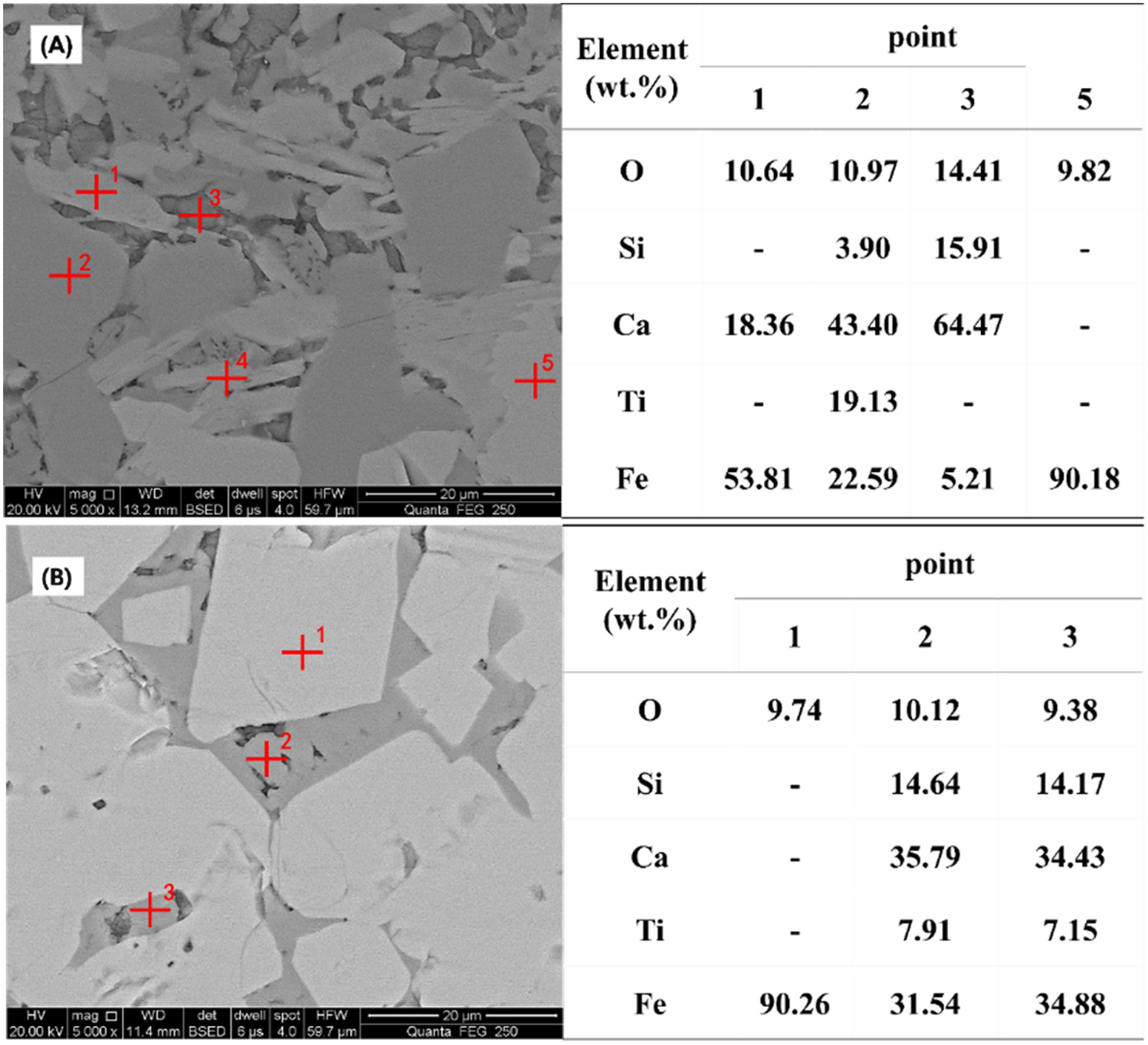

SEM- EDS analysis of sinter produced by the double-layer process. (A) product from the lower layer of S4, (B) product from the upper layer of S4.
Figure 5 | Scientific Reports
