Figure 6
From: Efficient double-layer sintering of titanomagnetite concentrate

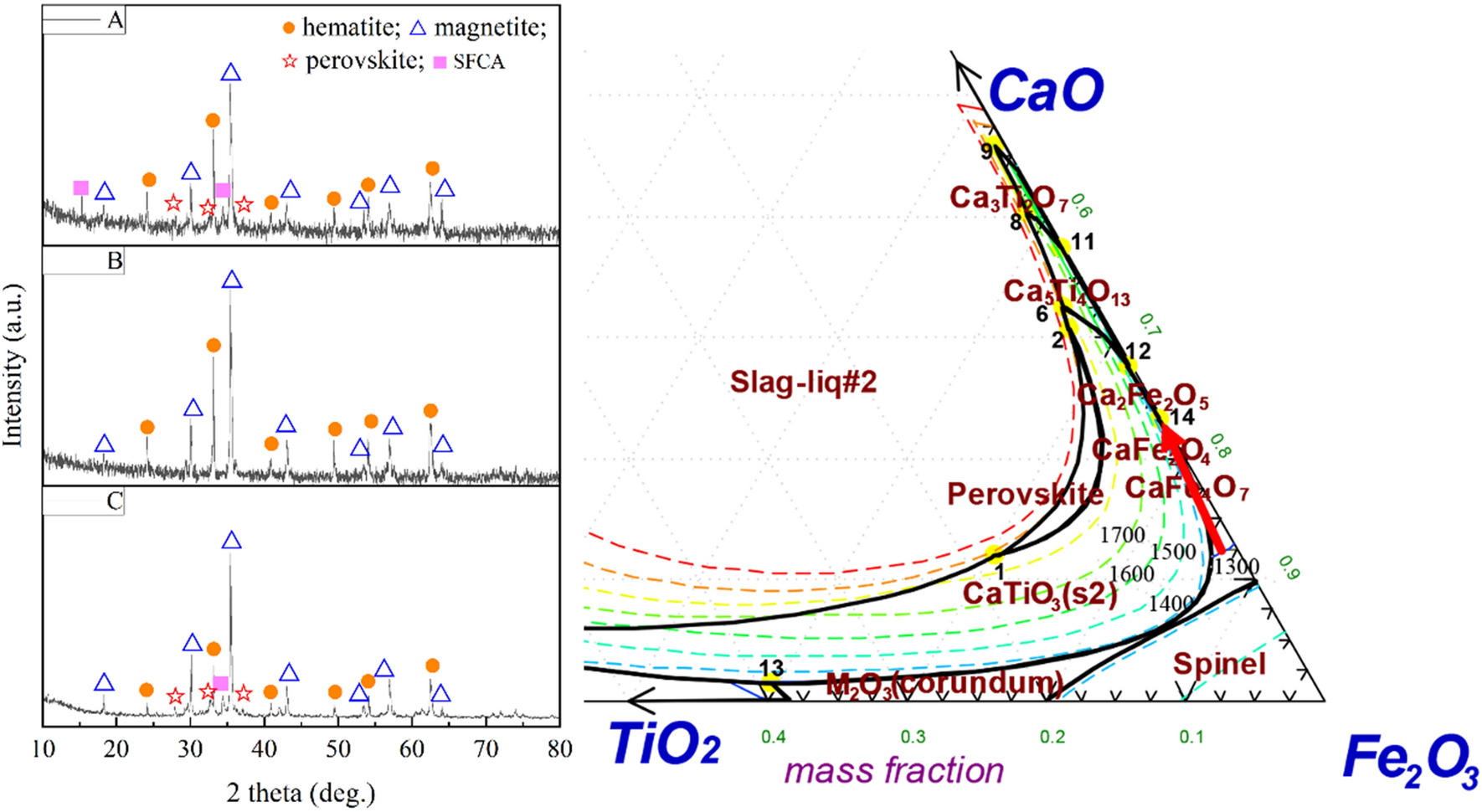

XRD patterns of the sinters obtained with different process and a projection of the liquidus surface of CaO–TiO2–Fe2O3 ternary phase diagram. (A—lower layer of S4, B—upper layer of S4, and C—basicity 2.0 of TSP).
