Figure 1

From: On the pseudo-hyperbolic behavior of charge transfer resistance–temperature dependence in corrosion behavior of Nickel based glass alloy

Figure 1

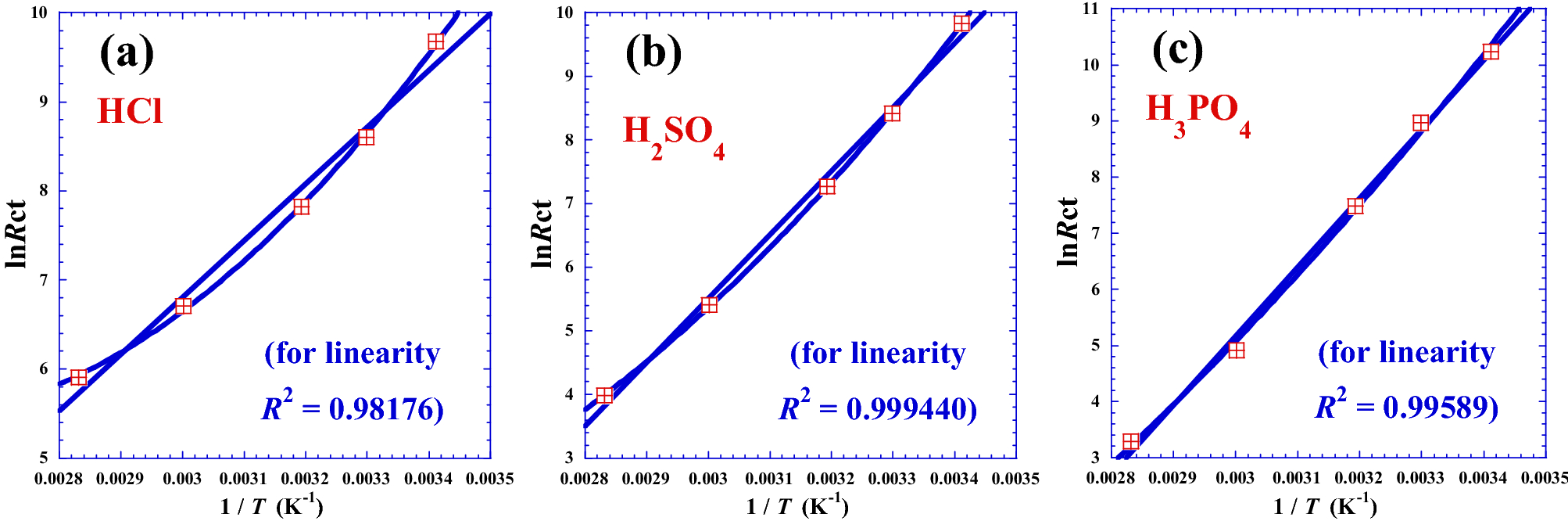

Variation of the logarithm of charge transfer resistance (lnRct) as a function of the inverse of the reciprocal temperature (1/T) related to the hydrochloric acid (HCl), the sulfuric acid (H2SO4) and the phosphoric acid (H3PO4) for the systems at the temperature range: 20–80 °C; (Table 1). Straight lines: linear regression (Eq. 2). Curved lines: nonlinear regression (Eq. 4) with second degree of polynomial.
