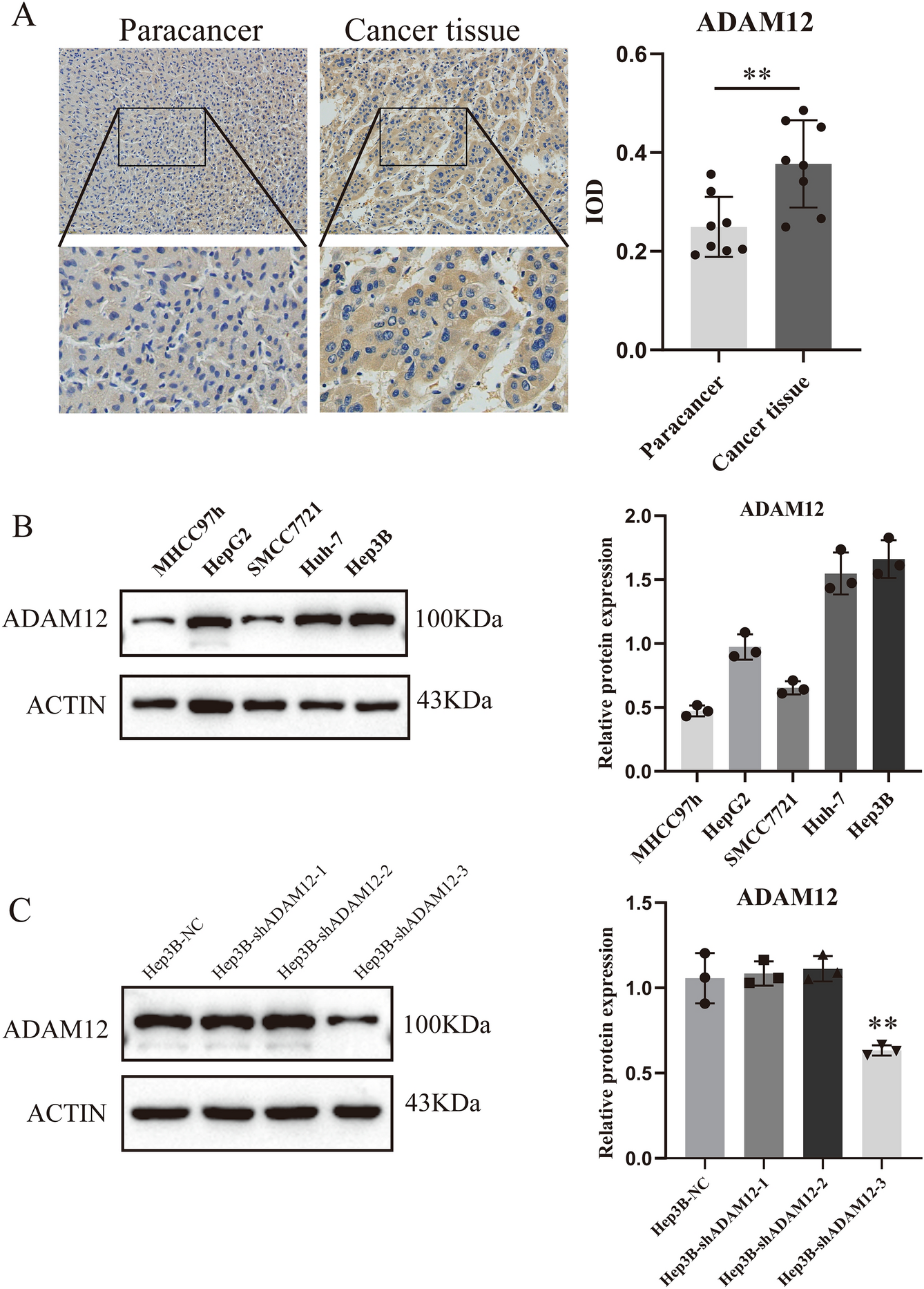

Figure 6
From: ADAM12 is an independent predictor of poor prognosis in liver cancer
Differential expression of ADAM12 in hepatocellular carcinoma tissues and hepatocellular carcinoma cells. (A) The expression of ADAM12 in cancer tissues and adjacent tissues was detected by IHC (n = 8). (B) Expression level of the ADAM12 gene in different hepatocellular carcinoma cells. (C) The validity of the ADAM12 gene shRNA plasmid was verified by Western blot analysis. Magnification, 100 × ; scale bar, 20 μm. The data are presented as the mean ± SD of three independent experiments. The display of cropped gels and blots in the picture and original blots/gels are presented in Supplementary PDF. *p < 0.05, **p < 0.01 and ***p < 0.001 indicate significance.
