Figure 5
From: Characterization and performance evaluation of Cu-based/TiO2 nano composites

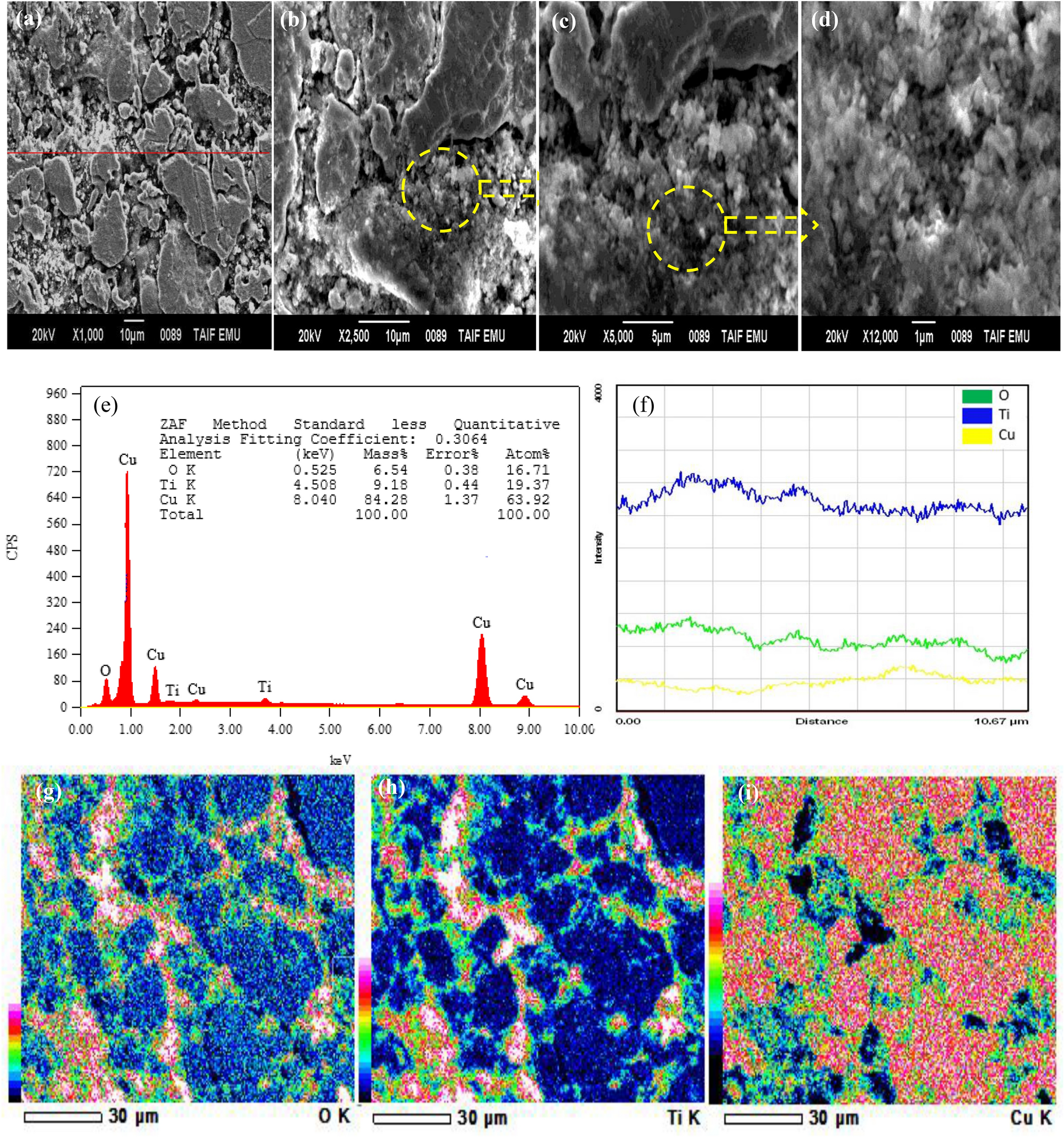

(a) SEM image of nanocomposite containing 12 wt.% TiO2; (b),(c),(d) Detailed regions of (a) with higher magnifications; EDS spectrum analysis of (a); (f) EDS Line analysis in (a); and (g),(h),(i) EDS mappings of Cu, Ti, and O elements present in (a).
