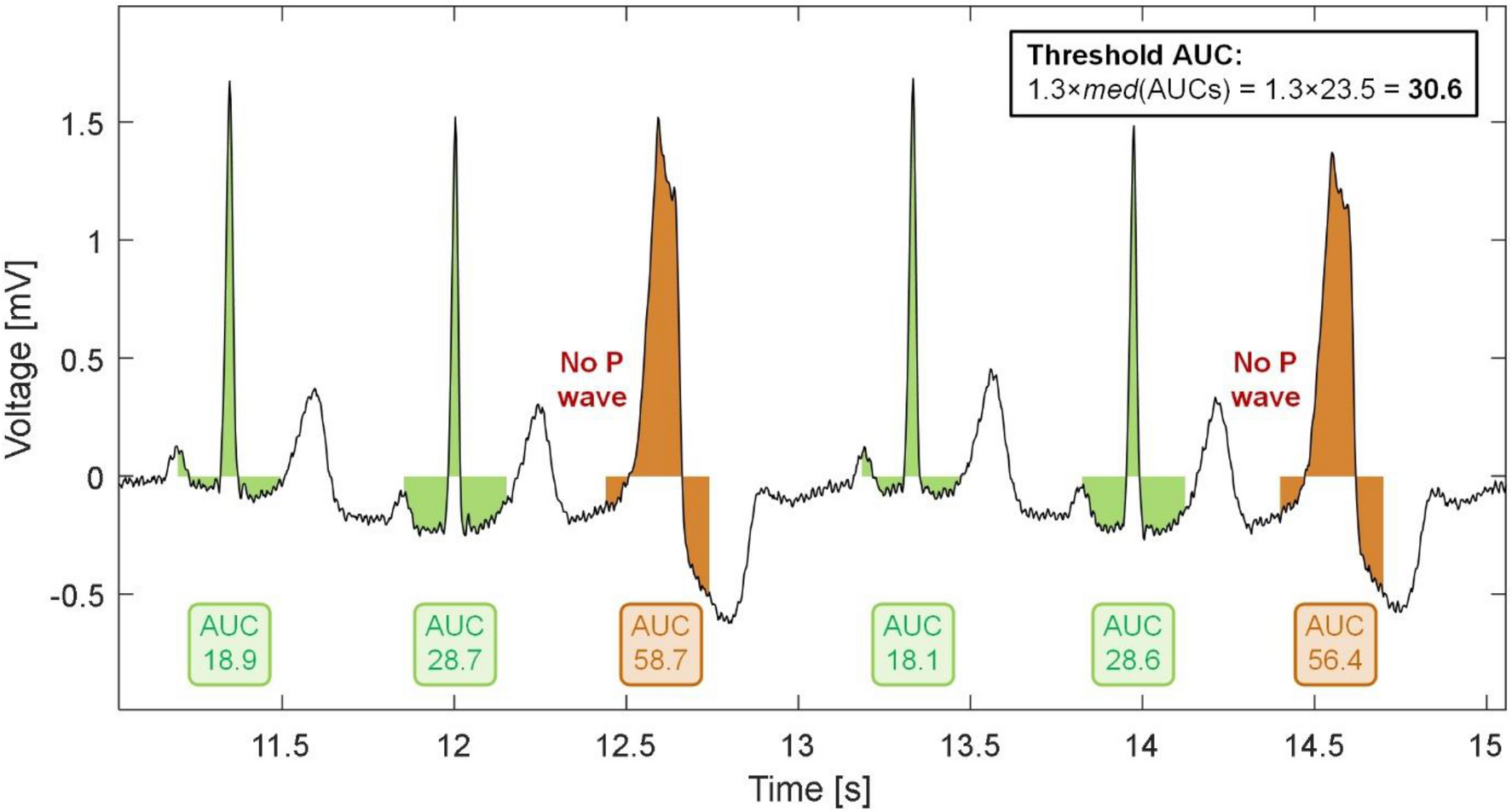

Figure 2
The illustration of PVC detection. The PVC is detected by thresholding the area under QRS complex (AUC) calculated in the ECG segment demarcated from R(i) − 150 ms to R(i) + 150 ms, where R(i) is the position of current QRS (R wave).
