Figure 4
From: Selection of oxygen reduction catalysts for secondary tri-electrode zinc–air batteries

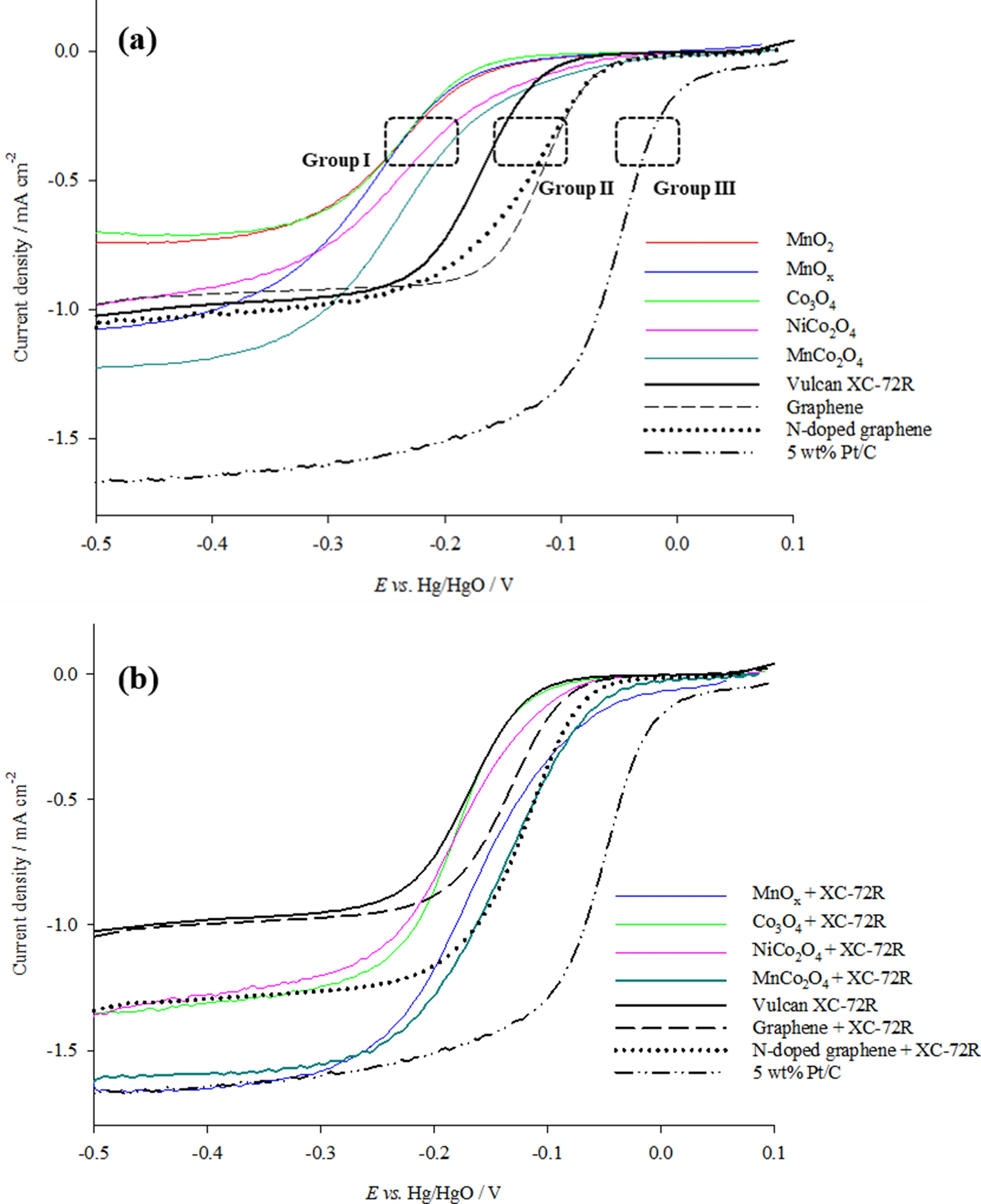

Linear sweep voltammograms of thin films of (a) catalysts and (b) catalysts with XC-72R, measured on glassy carbon RDE tip at 400 rpm, scan rate of 5 mV s−1 in O2 saturated 1 M NaOH at 298 K.
