Figure 15
From: Computer-aided efficient design and performance optimization of cutting head for roadheader

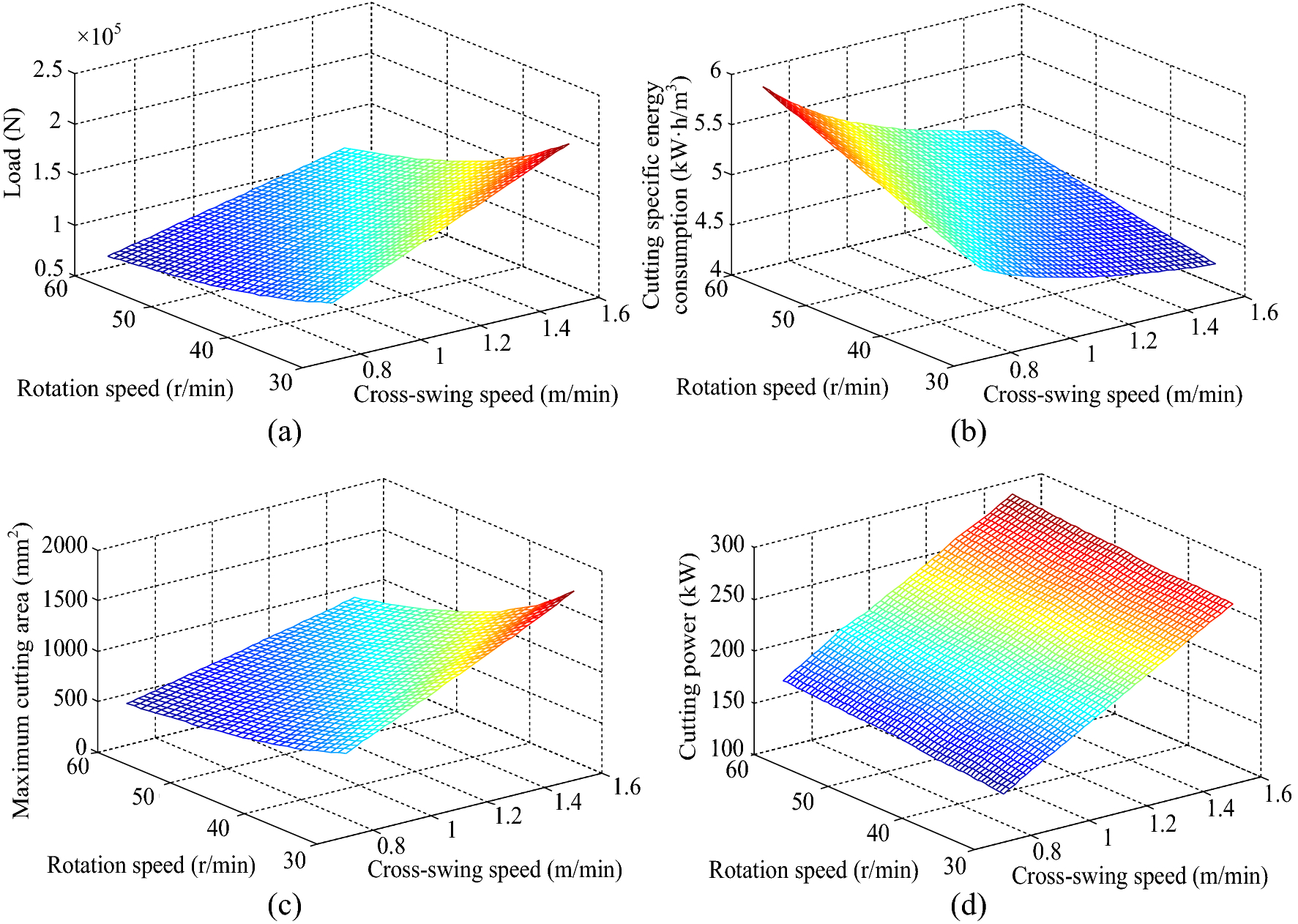

Relationship surfaces of each cutting performance index with the cross-swing speeds and rotation speeds: (a) cutting load; (b) cutting specific energy consumption; (c) maximum cutting area; (d) cutting power.
