Figure 2

From: Mammal extinction facilitated biome shift and human population change during the last glacial termination in East-Central Europe

Figure 2

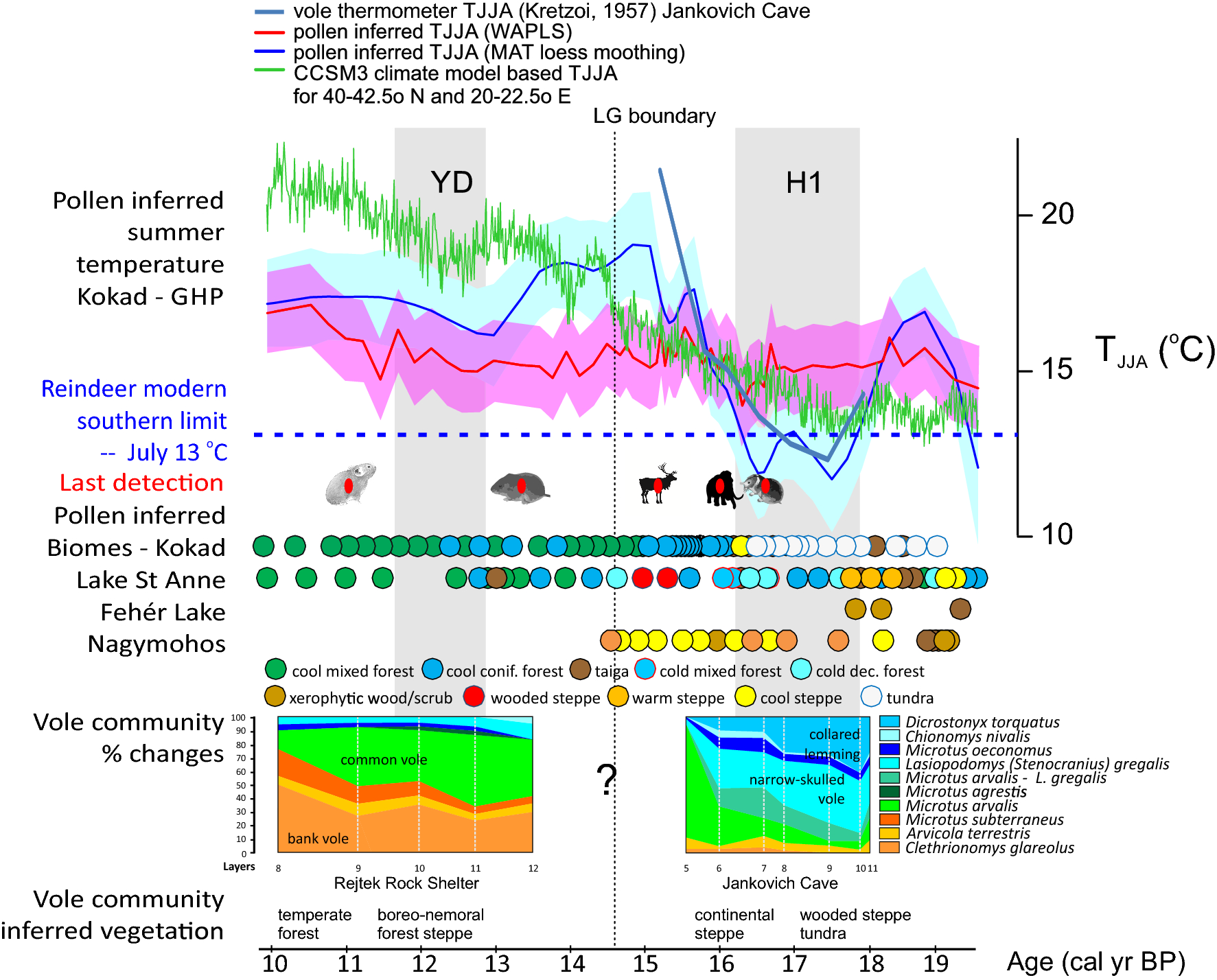

Vole community changes through time in two Carpathian Basin cave sediment profiles AMS 14C dated within the scope of this study (Jankovich Cave, Rejtek Rock Shelter); vegetation inferred from the vole community; reconstruction of the biome on the basis of five pollen records from the Carpathian Region (for locations see Fig. 1); last detection times of micro- and macrofauna elements in this study (from left: Ochotona pusilla, Lasiopodomys (S.) gregalis, Rangifer tarandus, Mammuthus primigenius, Dicrostonyx torquatus), pollen inferred summer mean temperature reconstructions (WAPLS, MAT) on the basis of the Kokad Mire pollen records (redrawn and modified from Magyari et al.18) and CCSM3 climate model based summer mean temperature simulation for the Kokad grid cell from PaleoView; animal drawings on this figure were made in Corel Draw version 23.0.0.363 by the first author.
