Figure 3
From: Network pharmacology of iridoid glycosides from Eucommia ulmoides Oliver against osteoporosis

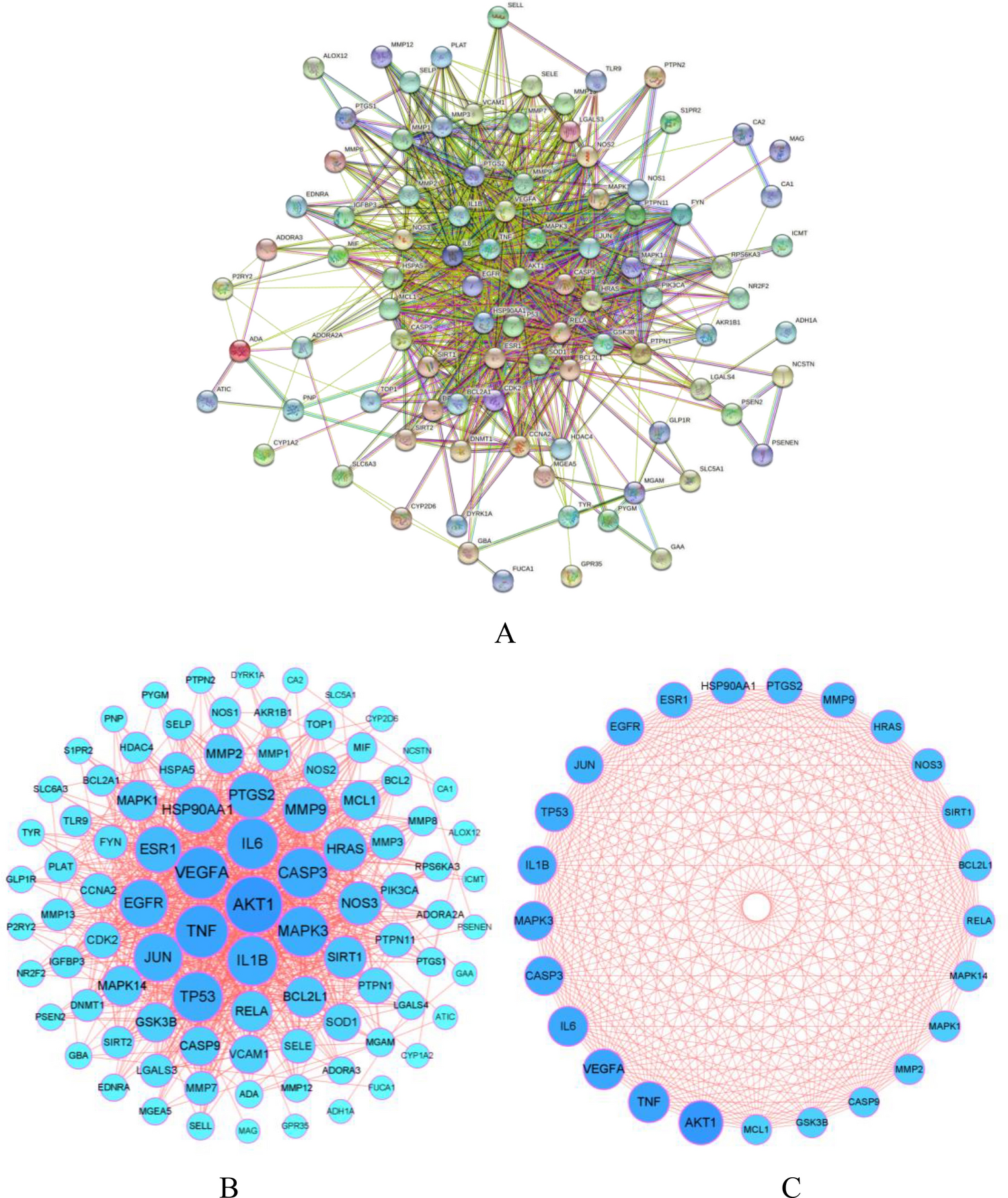

(A) Original PPI network from the database. (B) The optimized PPI network. The sizes and colors of the nodes were proportional to the edgecounts. The larger the node, the darker the color, and the stronger the interaction, indicating that the interaction played a more central role in the PPI network. (C) The hub PPI network. The sizes and colors were proportional to the edgecounts. [A was obtained from STRING11.0 database (https://string-db.org/), (B,C) were obtained from Cytoscape 3.8.0 (https://cytoscape.org)].
