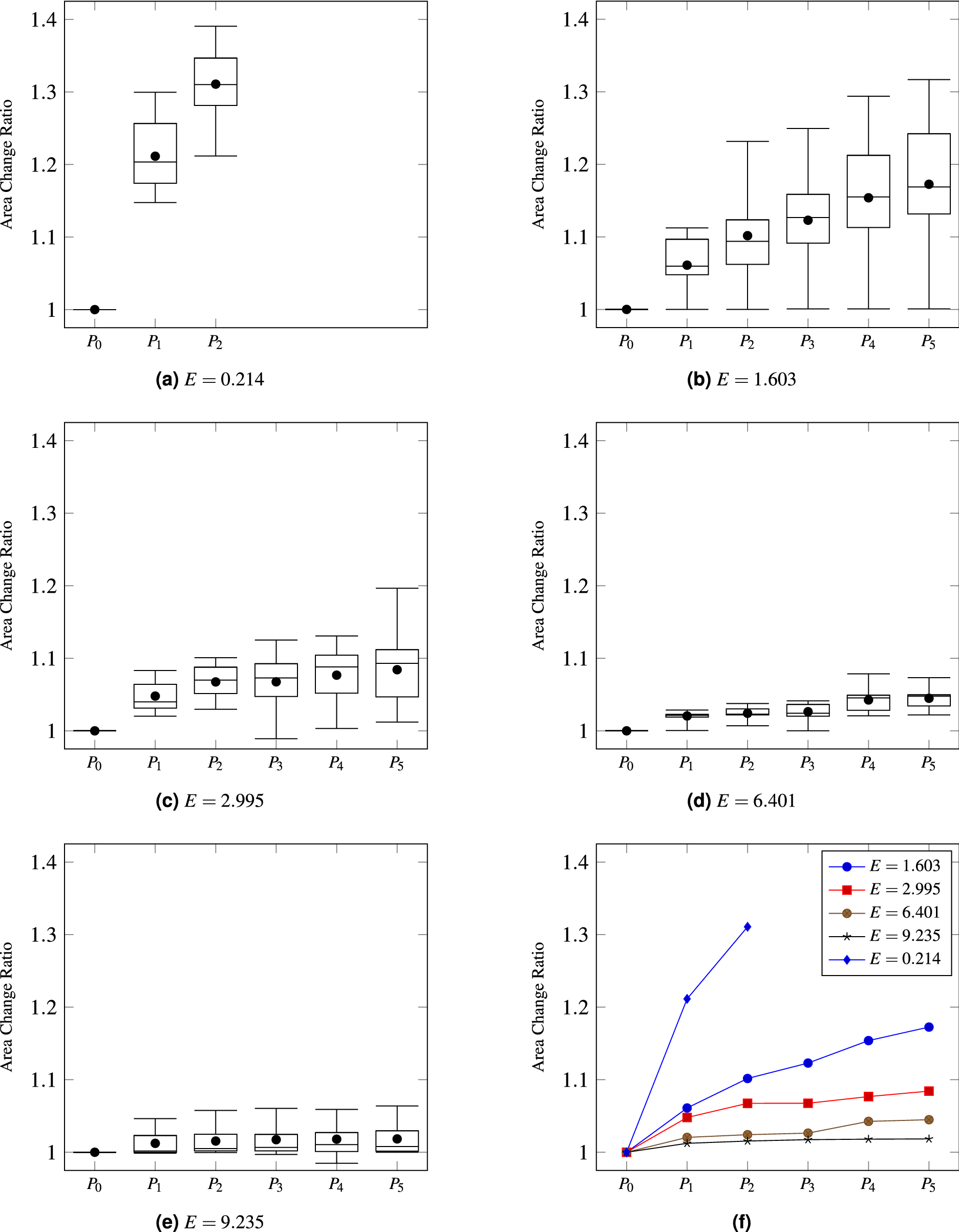

Figure 6
From: Automated estimation of cancer cell deformability with machine learning and acoustic trapping
Distributions of area change ratios of beads according to their Young’s moduli. (a–e) present manually measured area change ratios of the five types of beads (20 beads for each type), \(E = 0.214\), 1.603, 2.995, 6.401, and 9.235, respectively, in the same manner with Fig. 2 (a,b). (f) shows a comparison between the average area change ratios of each bead. The six figures exhibit that area changes of beads are not linearly proportional to pressure levels, as with live cells.
