Figure 8

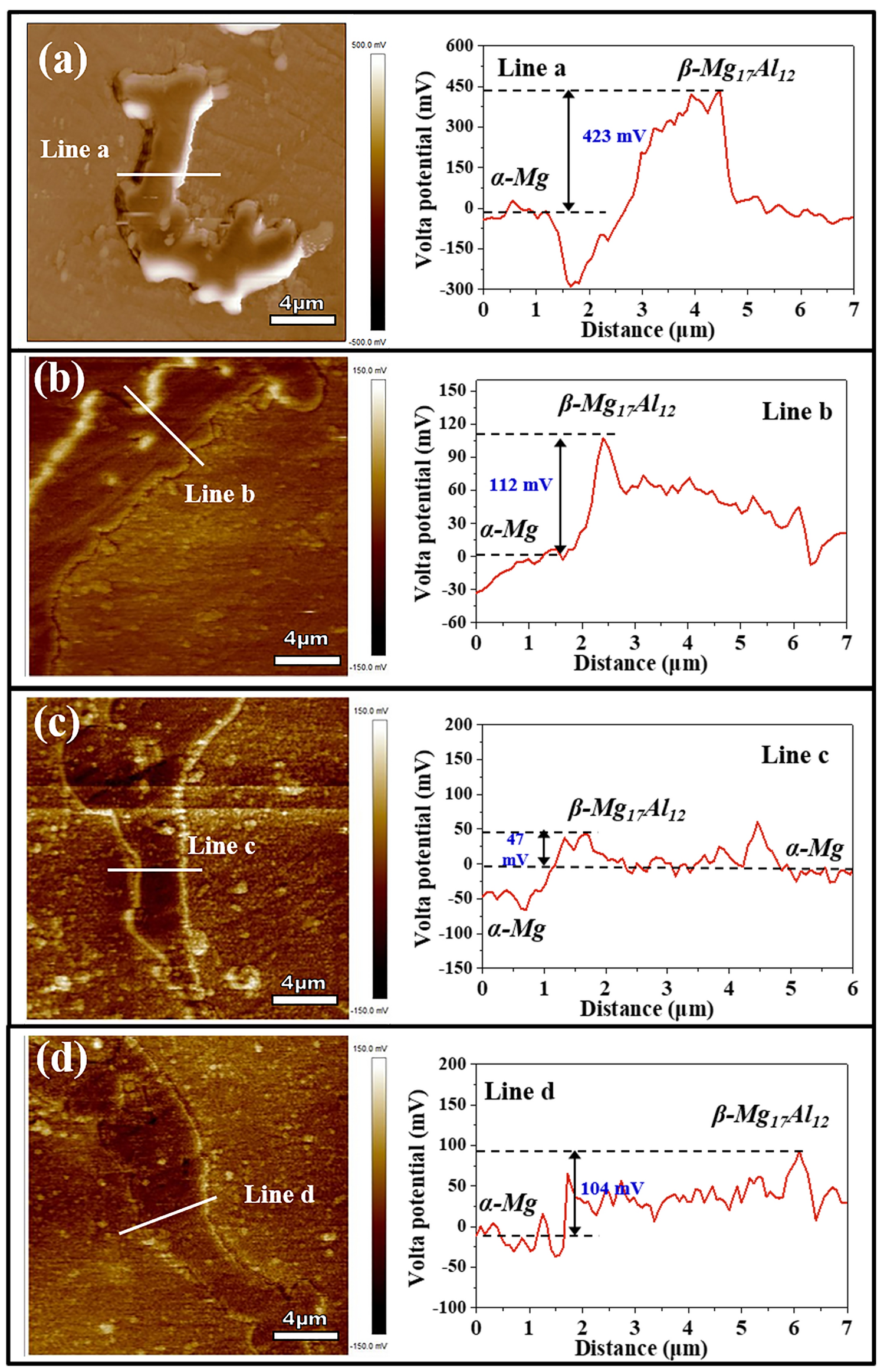

The surface volta potential maps of AZ91 alloys and corresponding potential profile of marked line after immersing in 3.5 wt% NaCl solution (a) without and with addition of (b) 2 g/L GUE (c) 2 g/L PDE (d) 2 g/L TOE for 24 h under normal atmospheric condition.
