Figure 5
From: Experimental investigation of heat transfer for diesel spray impingement on a high temperature wall

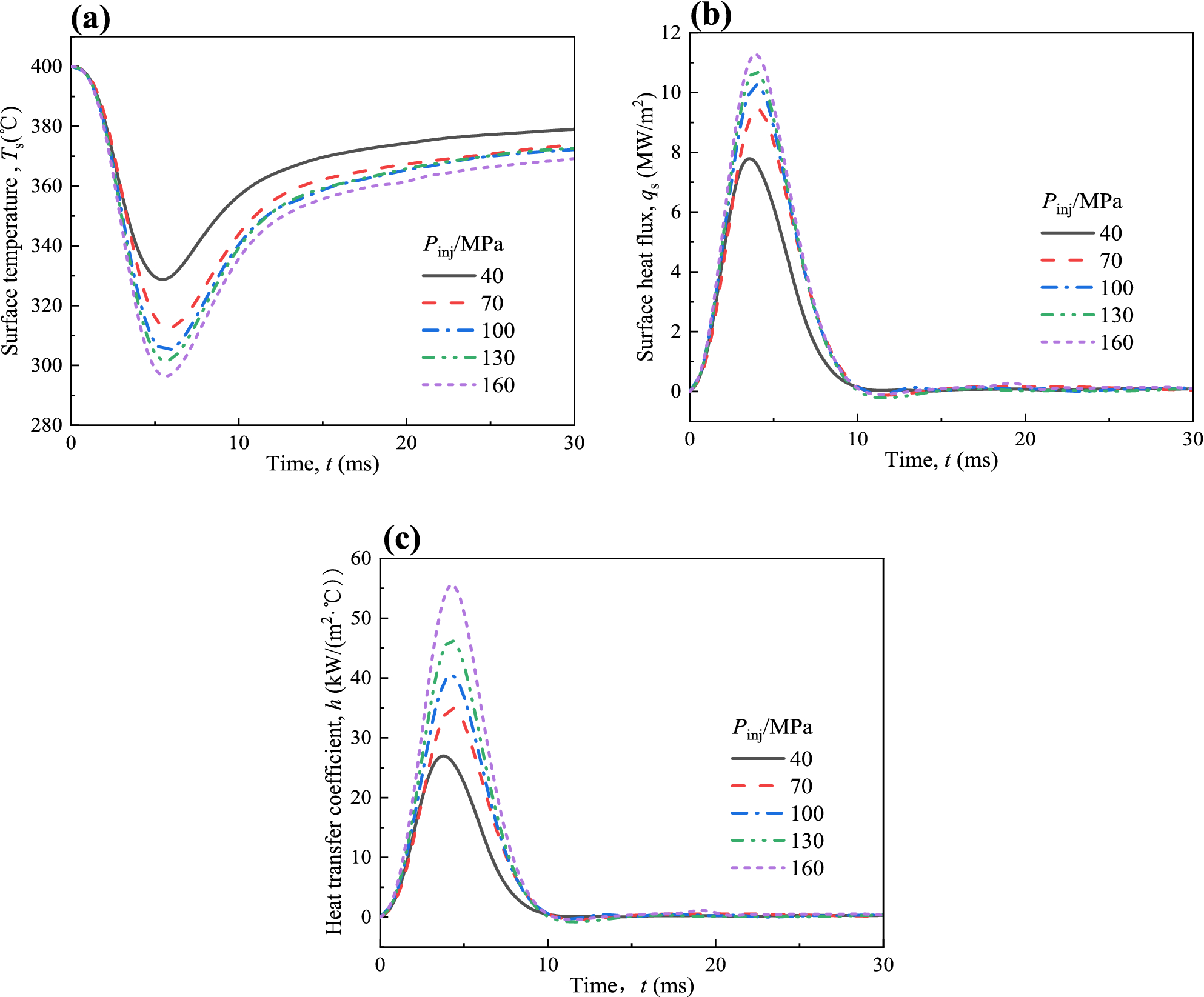

Variations of (a) Ts, (b) qs and (c) h at different Pinj with spray-wall impingement for Tinit = 400 °C and Tamb = 80 °C.
