Figure 3
From: The influence of friction on the determination of rock fracture toughness

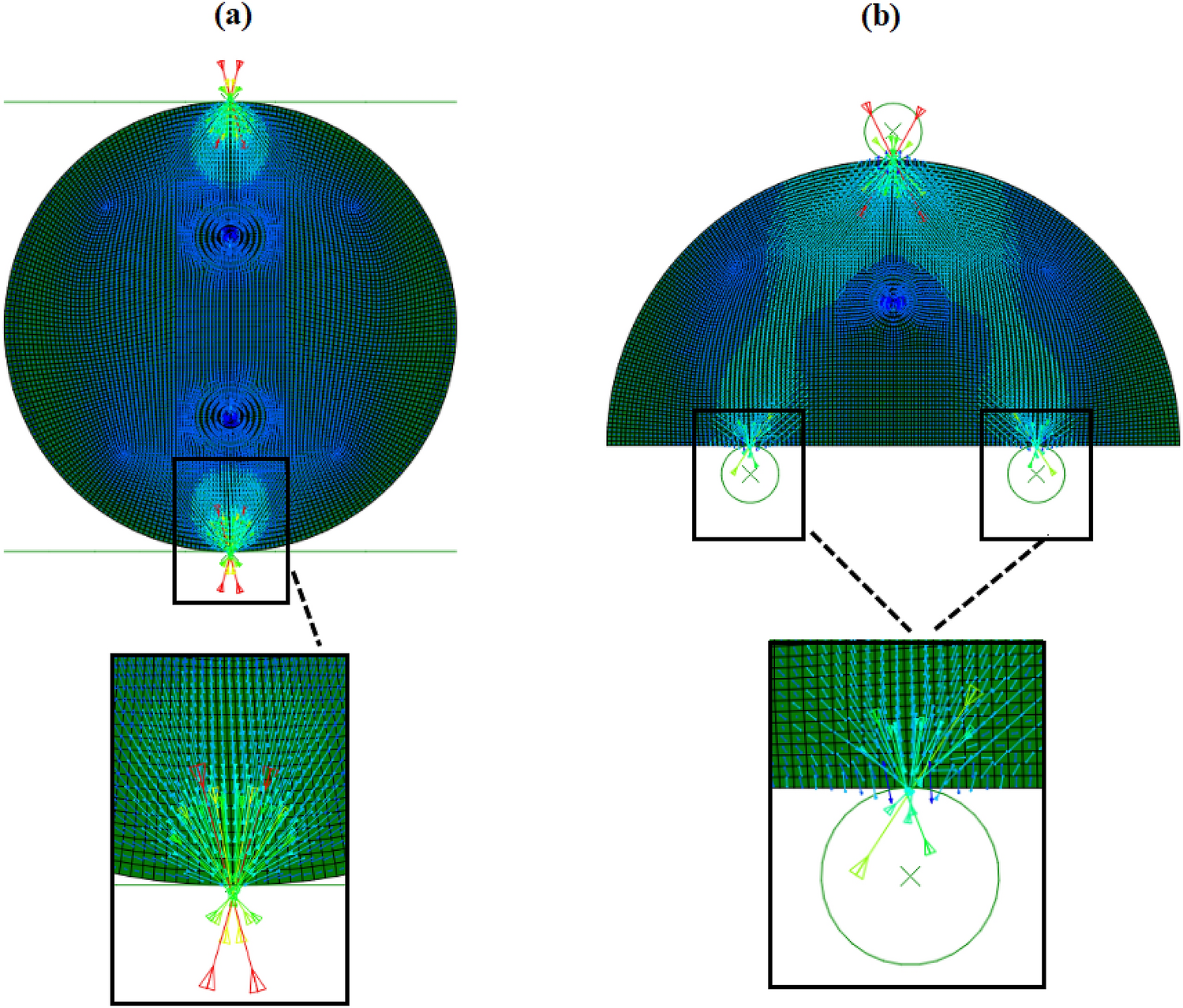

The orientation of principal stresses rock specimens with of (a) CSTBD configuration and (b) NSCB configuration determined by finite element method at friction coefficient of 0.2. The figure is exported from ABAQUS software 2016.
