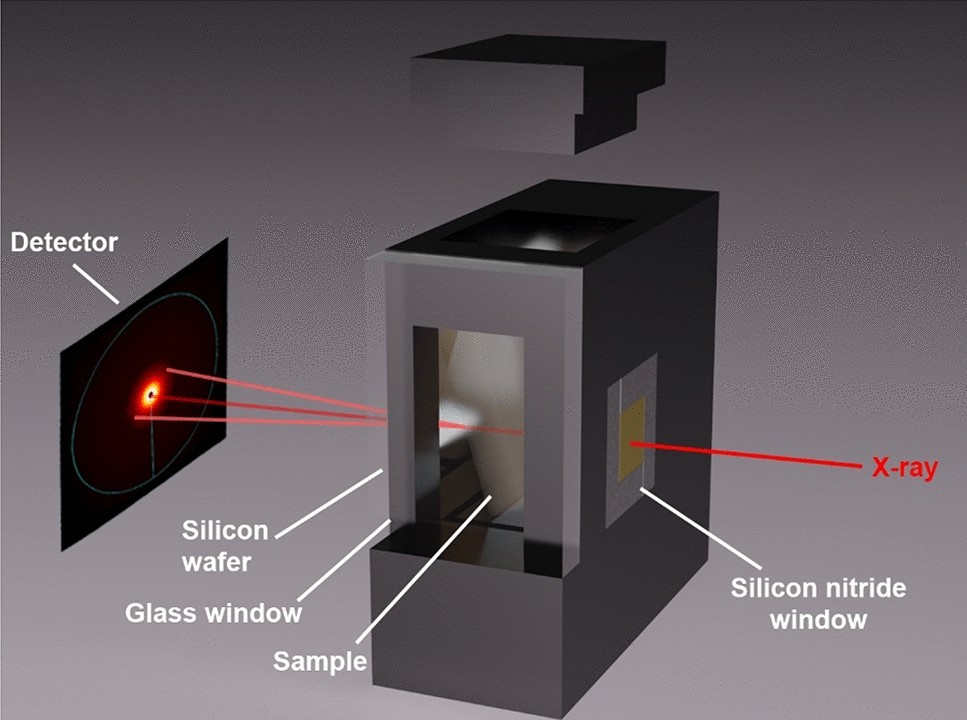

Figure 6

Rendering (Blender v2.90.1 https://www.blender.org/) of the in-situ measurement cell and the x-ray pathway through it. The measurement cell consists of anodized aluminium and is sealed with a silicon wafer, a silicon nitride window, a museum-glass window and an aluminium lid.
