Figure 10
From: Experimental research on surface acoustic wave microfluidic atomization for drug delivery

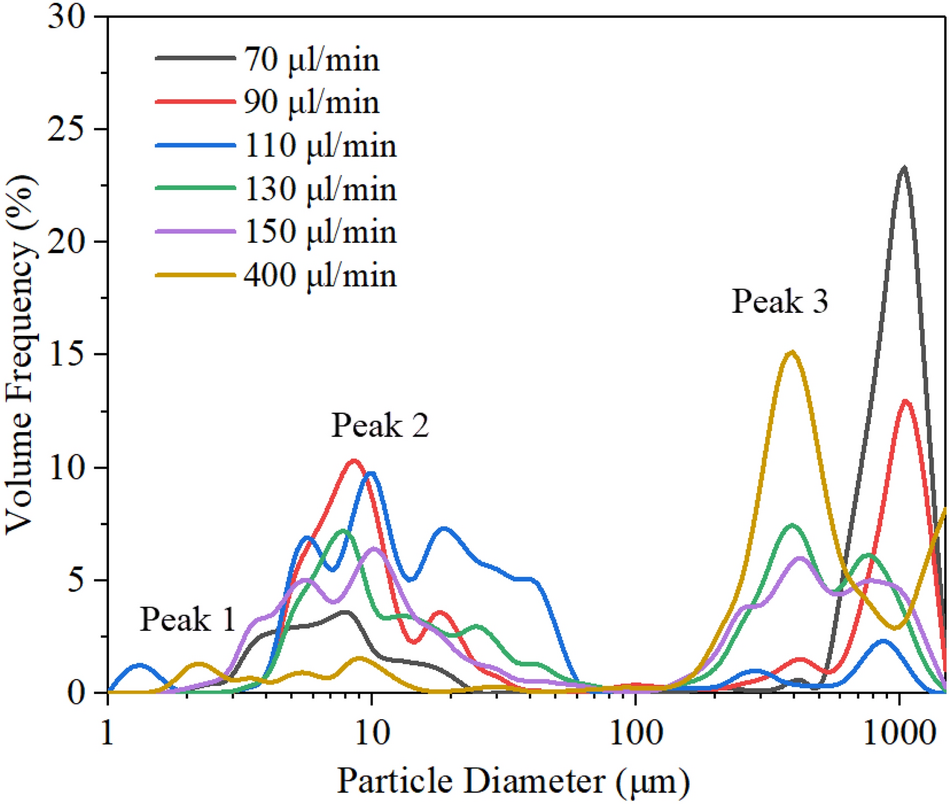

Aerosol droplet size distributions measured by laser diffractometry for different liquid flow rates with an SAW frequency of 30 MHz and input power of 6.62 W. Note that the Sauter mean diameter for the six analysed flow rates were 21.17 μm, 13.51 μm, 9.54 μm, 10.58 μm, 12.79 μm, and 32.51 μm, respectively.
