Figure 11
From: Experimental research on surface acoustic wave microfluidic atomization for drug delivery

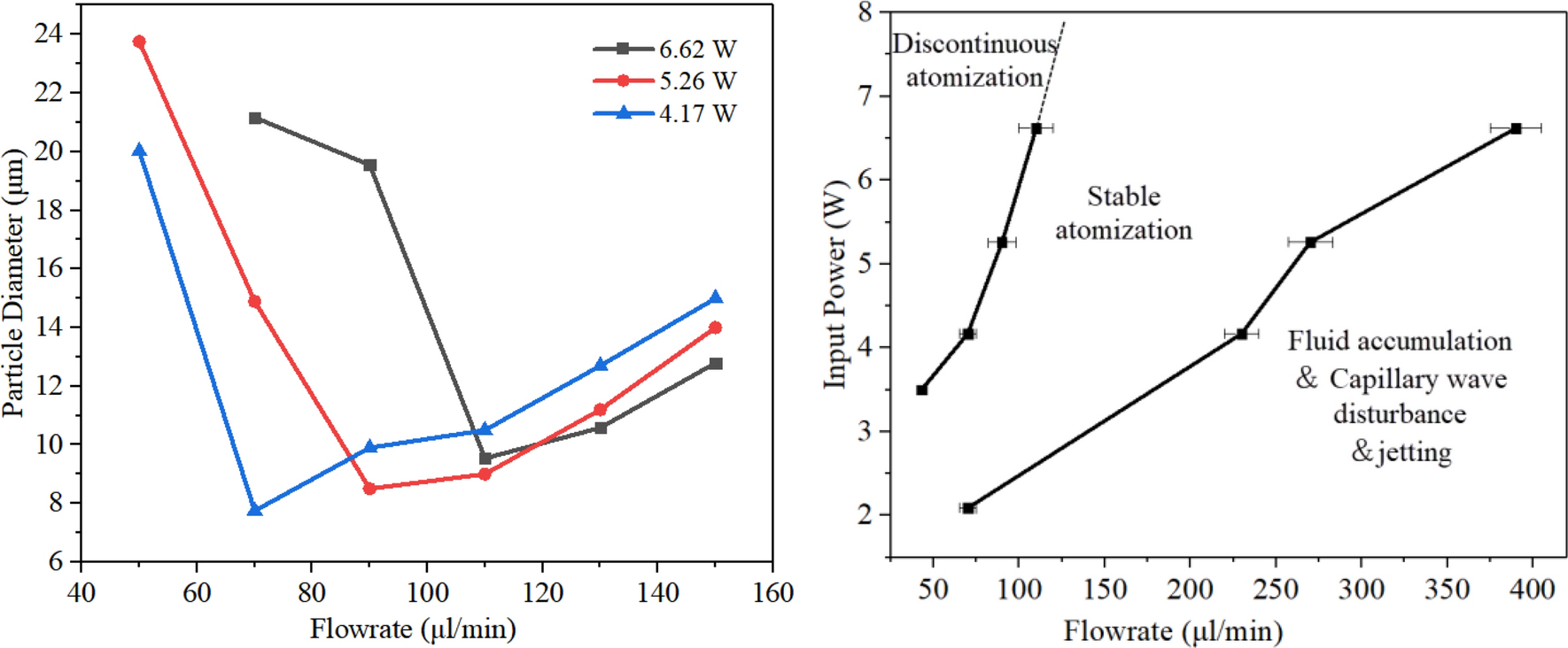

Effect of flow rate and input power on aerosol droplet size: (a) aerosol droplet size changes versus input power and liquid flow rates. (b) three different atomization regimes were determined by the combination of input power and flow rates.
