Figure 7

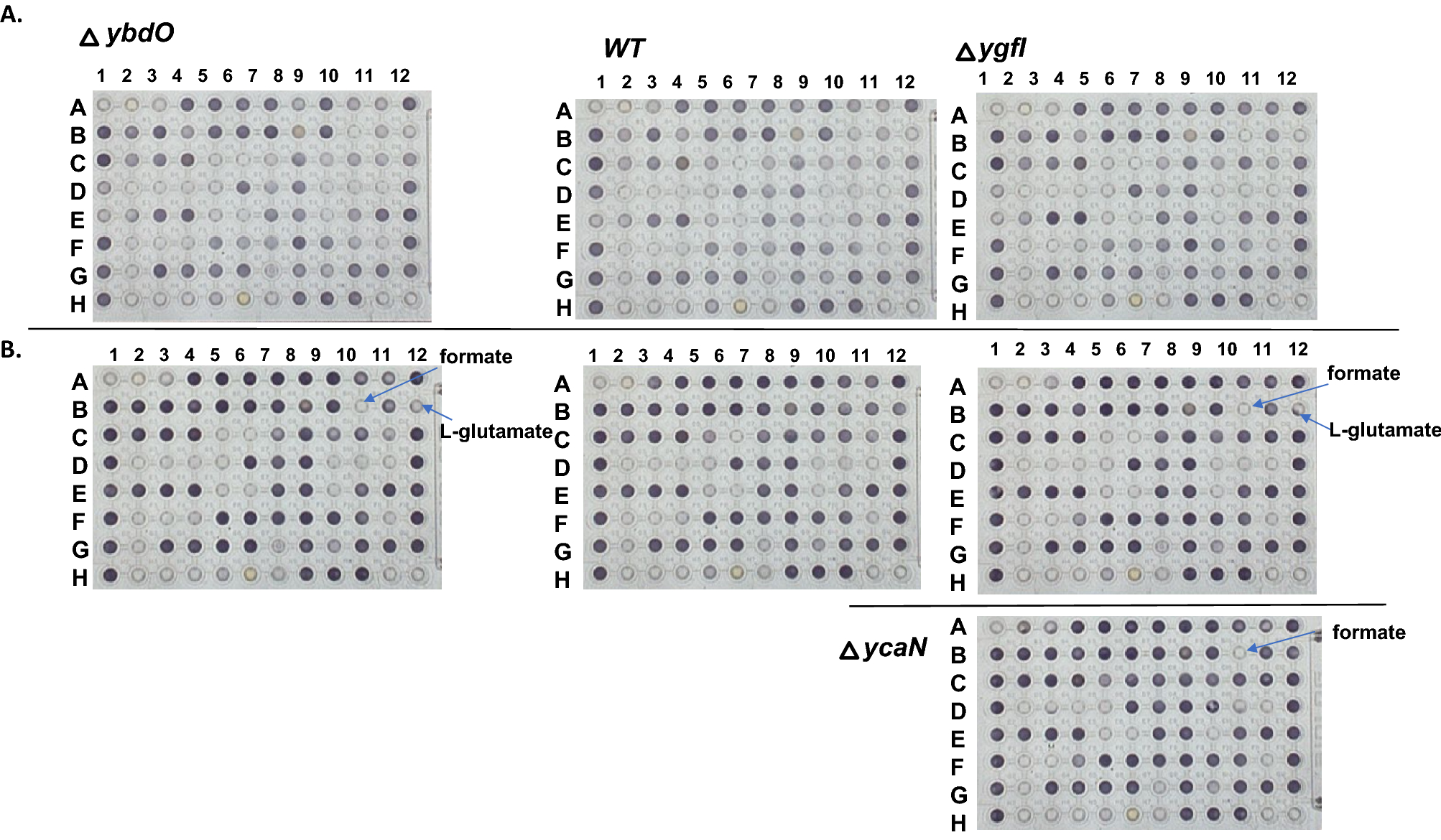

The systems approach for the phenotype detection of the transcription factors ybdO, ycaN and ygfI deletion mutants. The phenotype microarray (Biolog PM1 plate) (A. 12 h and B. 24 h growth) in M9 medium (95 carbon sources screening for ybdO and ygfI, ycaN deletion mutant strains compared to E. coli BW25113 (wild type, WT) strain. The carbon sources in PM1 plate: l-arabinose, N-acetyl-glucosamine, succinate, d-galactose, l-aspartate, l-proline, d-alanine, d-trehalose, d-mannose, d-serine, acetate, d-fructose, l-rhamnose, l-lactate, d-xylose, d-sorbitol, l-fucose, d-gluconate, d-glucuronate, d-glycerol-P, d-glucose, d-mellibiose, Lactose, maltose, uridine, l-glutamine, adenosine, l-glutamate, adenosine, l-serine, l-threonine, etc.
