From: Climate change will disproportionally affect the most genetically diverse lineages of a widespread African tree species

Figure 5

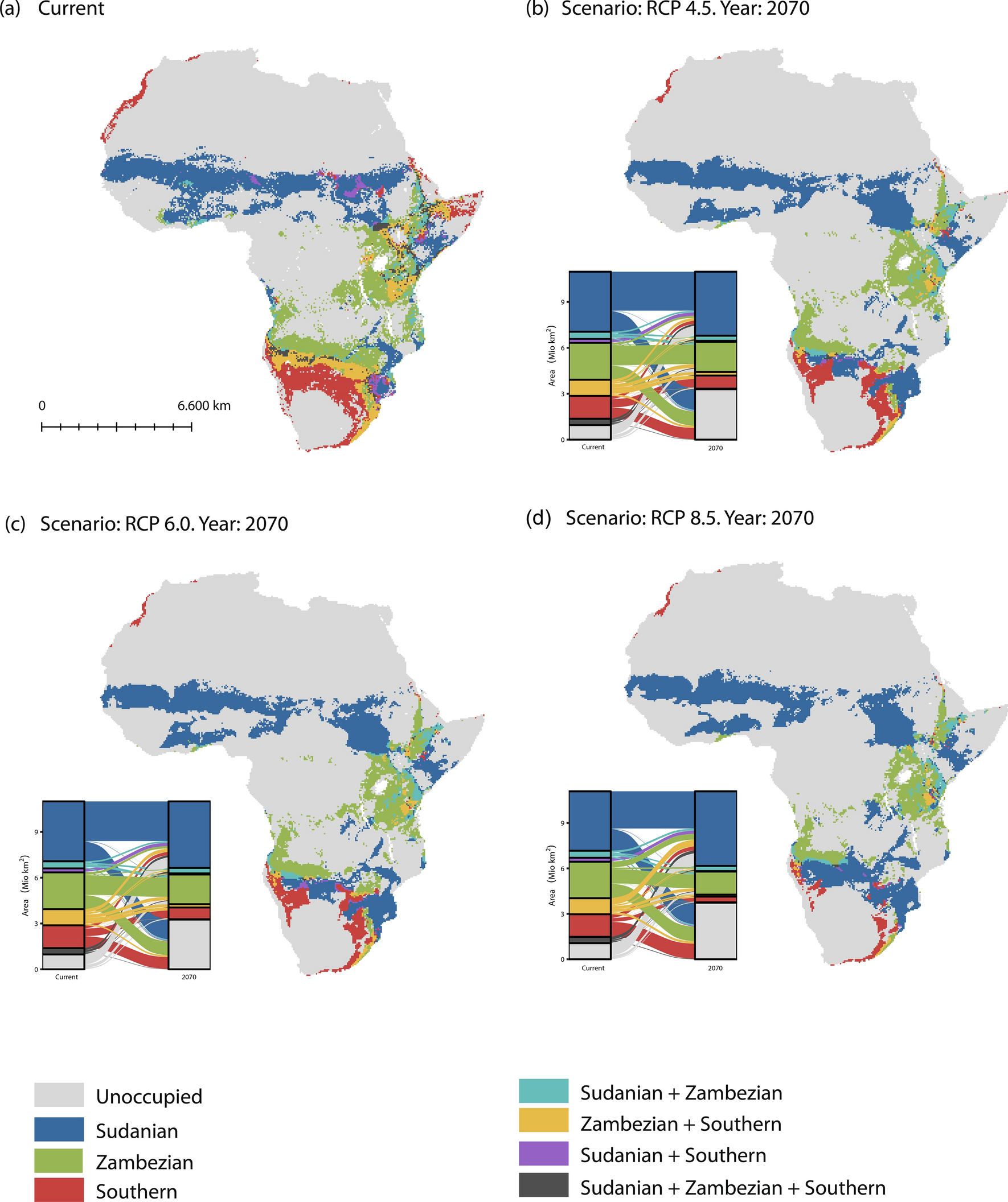

Potential current and future (2070) distribution of three phylogeographic groups of Senegalia senegal (Sudano-Sahelian, Zambezian and Southern) in Africa according to Biomod2 distribution modelling. (a) Present-day suitability; (b) intermediate emission RCP 4.5 scenario; (c) high emission RCP 6.0 scenario and (d) very high emission RCP 8.5 scenario projected with CCSM4 model. Inset (b–d) are Sankey plots showing how the area occupied by the phylogroups will change for three climate change scenarios. The shape files for the maps were downloaded from WORLDCLIM41. The modeled potential future distribution of S. senegal were generated using ArcGIS Desktop ver. 10.542 .
