Figure 6
From: Nobiletin ameliorates high fat-induced disruptions in rhythmic glucagon-like peptide-1 secretion

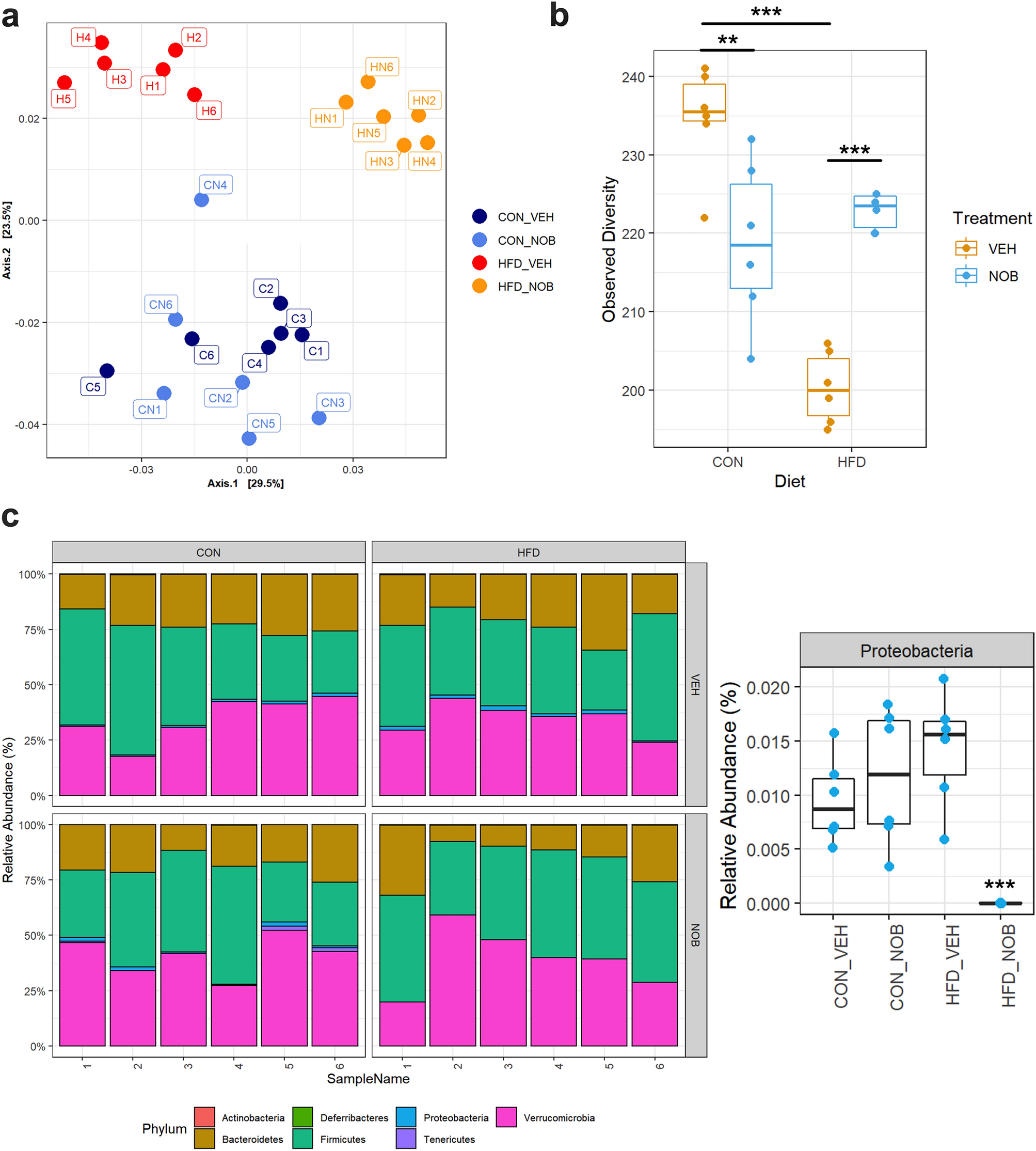

Nobiletin improves the gut microbiome in HFD-fed mice. (a) Principal component analysis, (b) species diversity, and (c) relative abundance of phyla, including a plot for Proteobacteria, of the colonic microbiome at ZT14 from control (CON) and high-fat diet (HFD)-fed mice without (vehicle; VEH) or with nobiletin (NOB) supplementation. n = 6, with each dot and each bar showing the data for a single animal; **p < 0.01 ***p < 0.001.
