Figure 1 | Scientific Reports

Figure 1

From: Short term treatment with a cocktail of rapamycin, acarbose and phenylbutyrate delays aging phenotypes in mice

Figure 1

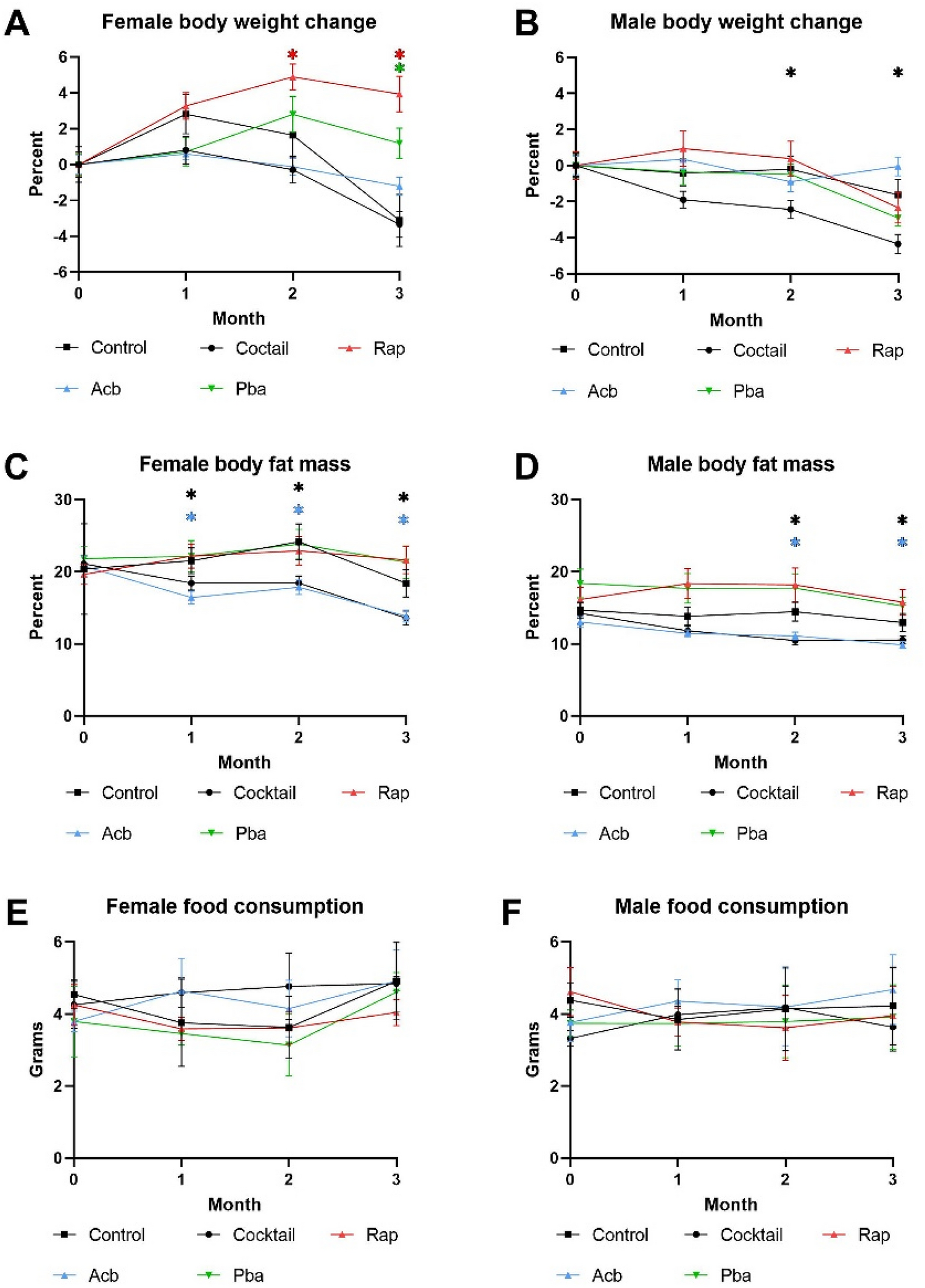

Biological parameters were assessed monthly in C57BL/6 mice fed drug cocktail chow or chow with each individual drug or control for three months starting at 20 months of age. (A) Body weight in females, (B) body weight in males, (C) body fat mass measured by magnetic resonance imaging in females, (D) body fat mass measured by magnetic resonance imaging in males, (E) food intake measured over 3 days each month for females, (F) food intake measured over 3 days each month for males. N = 12–14/cohort. *p ≤ 0.05, ANOVA with Tukey’s post-hoc comparison and two-tailed, unpaired Student’s t-test.
