Figure 6

From: Design of effective self-powered SnS2/halide perovskite photo-detection system based on triboelectric nanogenerator by regarding circuit impedance

Figure 6

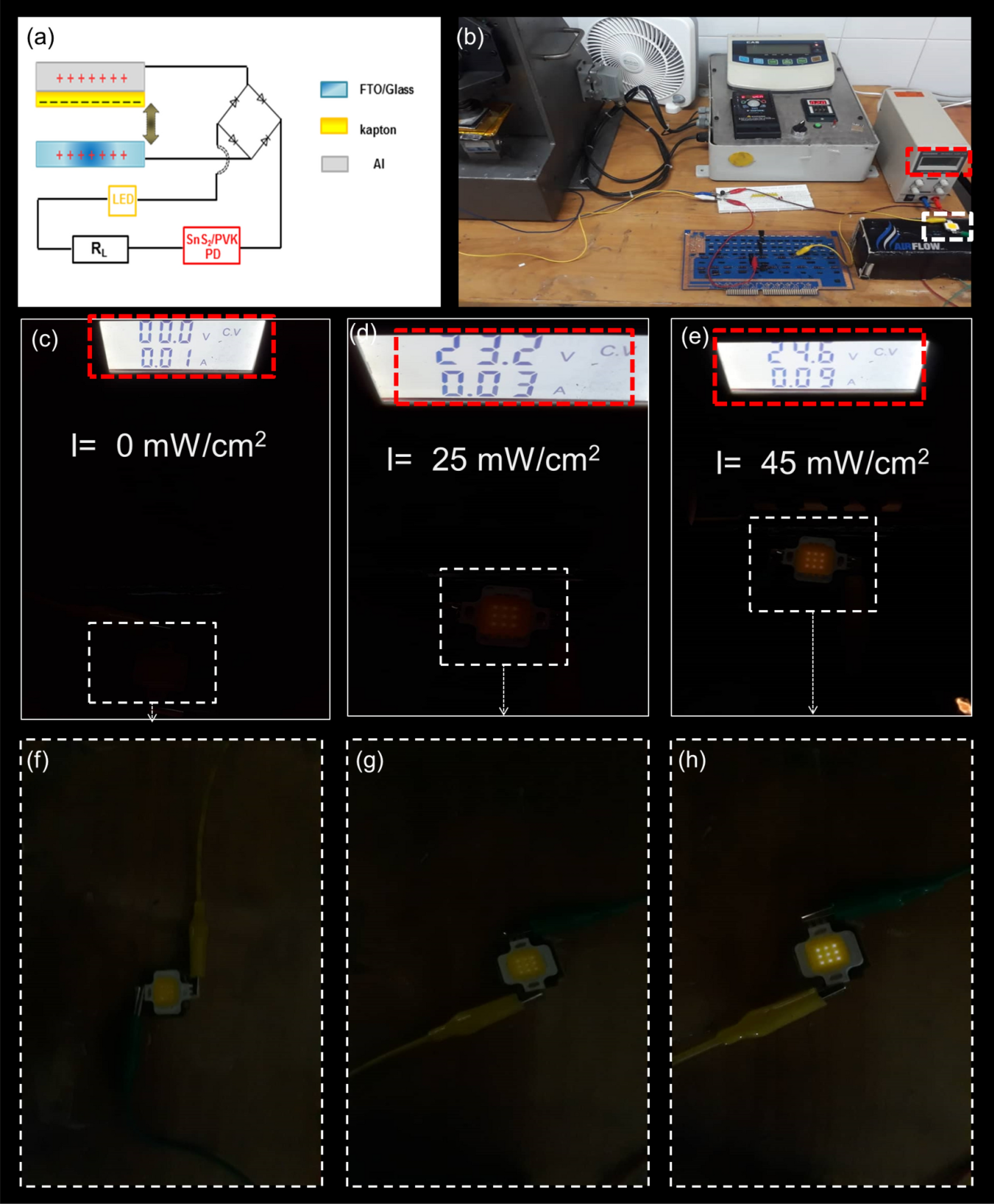

The performance of the integrated SnS2/PVK self-powered PD by using the LED marker display. (a) schematic and (b) the photograph of the photoelectric detection of the self-powered SnS2/PVK PD by FTO/Kapton by using rectifier bridge, load resistance and LED as the marker of detecting the white light illumination with different intensities. The brightness of the LED marker in the circuit under (c) and (f) dark conditions and white light with (d) and (g) 25 mW/cm2 and (e) and (h) 45 mW/cm2 intenisites.
